Pony Wall Anchors and Knee Wall Anchors
-
ClarkDietrich LGPW24 PONY WALL LITE (16 GA) 24IN 23-5/8" Tall x 2-3/8" wide x 5-1/2" long plate 54mil (16ga) stud 3/8" plate
Regular price $30.80 USDRegular priceUnit price / per -
ClarkDietrich LGPW36 PONY WALL LITE (16 GA) 36IN 35-5/8" Tall x 2-3/8" wide x 5-1/2" long plate 54mil (16ga) stud 3/8" plate
Regular price $35.20 USDRegular priceUnit price / per -
ClarkDietrich PW36 PONY WALL HEAVY (12 GA) 36IN 35-3/4" Tall x 3-3/8" wide x 8" long plate 97mil (12ga) stud 1/2" plate
Regular price $63.81 USDRegular priceUnit price / per -
ClarkDietrich LGPW48 PONY WALL LITE (16 GA) 48IN 47-5/8" Tall x 2-3/8" wide x 5-1/2" long plate 54mil (16ga) stud 3/8" plate
Regular price $39.60 USDRegular priceUnit price / per -
ClarkDietrich PW60 PONY WALL HEAVY (12 GA) 60IN *DOES NOT CURRENTLY HAVE LOAD DATA* 59-3/4" Tall x 3-3/8" wide x 8" long plate 97mil (12ga) stud 1/2" plate
Regular price $107.83 USDRegular priceUnit price / per -
ClarkDietrich PW48 PONY WALL HEAVY (12 GA) 48IN 47-3/4" Tall x 3-3/8" wide x 8" long plate 97mil (12ga) stud 1/2" plate
Regular price $72.61 USDRegular priceUnit price / per -
ClarkDietrich LGPW60 PONY WALL LITE (16 GA) 60IN 59-5/8" Tall x 2-3/8" wide x 5-1/2" long plate 54mil (16ga) stud 3/8" plate
Regular price $66.01 USDRegular priceUnit price / per -
ClarkDietrich PW24 PONY WALL HEAVY (12 GA) 24IN 23-3/4" Tall x 3-3/8" wide x 8" long plate 97mil (12ga) stud 1/2" plate
Regular price $55.01 USDRegular priceUnit price / per -

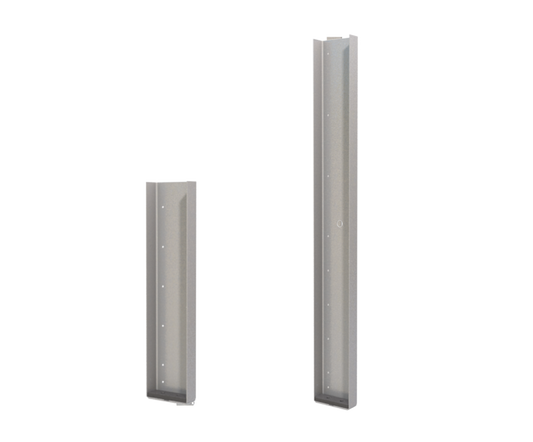

The Steel Network (600MW-24) MidWall™ - Cantilevered Partial Wall Framing System for Cold-Formed Steel Framing 24" x 6" x 97mils (12ga)
Regular price $66.10 USDRegular priceUnit price / per -
The Steel Network (600MW-48) MidWall™ - Cantilevered Partial Wall Framing System for Cold-Formed Steel Framing 48" x 6" x 97mils (12ga)
Regular price $79.91 USDRegular priceUnit price / per -
The Steel Network (362MW-48) MidWall™ - Cantilevered Partial Wall Framing System for Cold-Formed Steel Framing 48" x 3-5/8" x 118mils (10ga)
Regular price $62.53 USDRegular priceUnit price / per -
The Steel Network (362MW-24) MidWall™ - Cantilevered Partial Wall Framing System for Cold-Formed Steel Framing 24" x 3-5/8" x 118mils (10ga)
Regular price $51.73 USDRegular priceUnit price / per -
The Steel Network (250MW-48) MidWall™ - Cantilevered Partial Wall Framing System for Cold-Formed Steel Framing 48" x 2-1/2" x 118mils (10ga)
Regular price $53.84 USDRegular priceUnit price / per -
The Steel Network (250MW-24) MidWall™ - Cantilevered Partial Wall Framing System for Cold-Formed Steel Framing 24" x 2-1/2" x 118mils (10ga)
Regular price $44.53 USDRegular priceUnit price / per
Collection: Pony Wall Anchors and Knee Wall Anchors

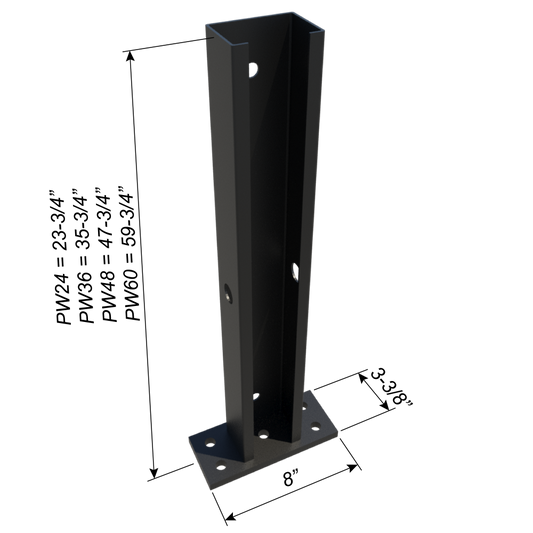

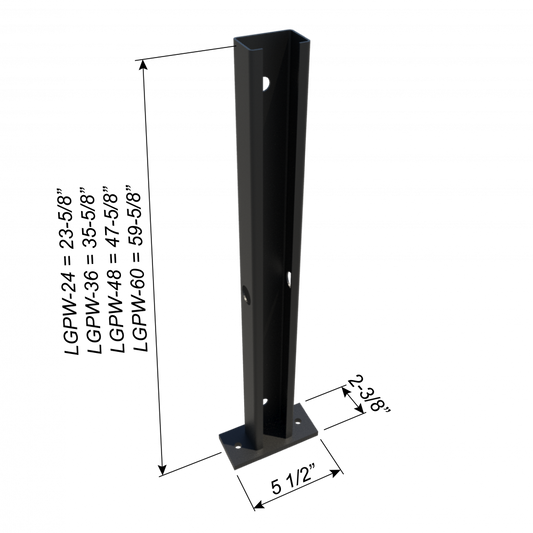

A pony wall also known as a knee wall is a short wall anywhere from three to five feet tall and usually unsupported at the top. Because it is unsupported at the top, pony walls/knee walls need very strong anchors in the floor to hold them vertical. This product and others from the same family offer a very robust way to anchor your pony wall down to the floor.
We offer heavy and lite pony wall supports in nominal sizes from two foot to five foot tall in heavy and lite configurations. We recommend lite configurations for residential applications and heavy configurations for commercial applications.
Call our support team at (337) 282-5876 or email us at sales@usframefactory.com for more information.
