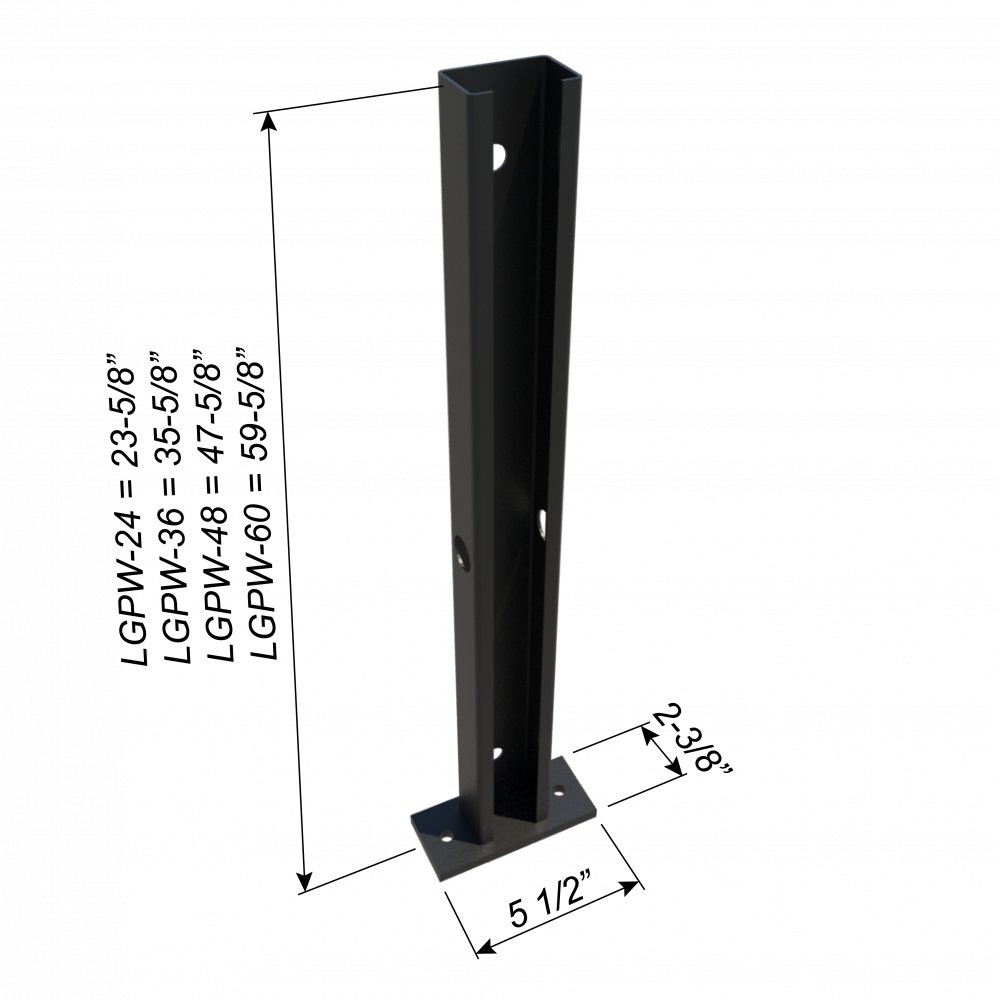

ClarkDietrich LGPW60 PONY WALL LITE (16 GA) 60IN 59-5/8" Tall x 2-3/8" wide x 5-1/2" long plate 54mil (16ga) stud 3/8" plate
ClarkDietrich LGPW60 PONY WALL LITE (16 GA) 60IN 59-5/8" Tall x 2-3/8" wide x 5-1/2" long plate 54mil (16ga) stud 3/8" plate
Couldn't load pickup availability
Product Description
The ClarkDietrich Pony Wall is intended to support out-of-plane loading of cantilevered partial wall systems that are unsupported at the top track. A pony wall (also known as a knee wall) is a short wall often about 3 feet tall that is usually unsupported at the top. Because it is unsupported at the top, pony walls/knee walls need very strong anchors in the floor to hold them vertical. This product and others from the same family offer a very robust solution for anchoring your pony wall down to the floor. Installation: Install the Pony Wall inside the track or directly to the floor structure. Anchor to the floor as designed by EOR. Attach the studs to both flanges of the Pony Wall. A minimum of 2-1/2" stud member can be used with the Pony Wall Lite and a minimum of 3-1/2" stud member can be used with the Pony Wall Heavy.
Product Information
- Sold per piece
- Dimensions: 59-5/8" Tall x 2-3/8" wide x 5-1/2" long plate 54mil (16ga) stud 3/8" plate
- Strong connection supports pony/knee wall.
- Plate Material: ASTM A36 3/8" thick hot rolled steel.
- Stud Material: ASTM A1011 SS Grade 50, 50ksi (340 MPa) 16ga (54mil).
