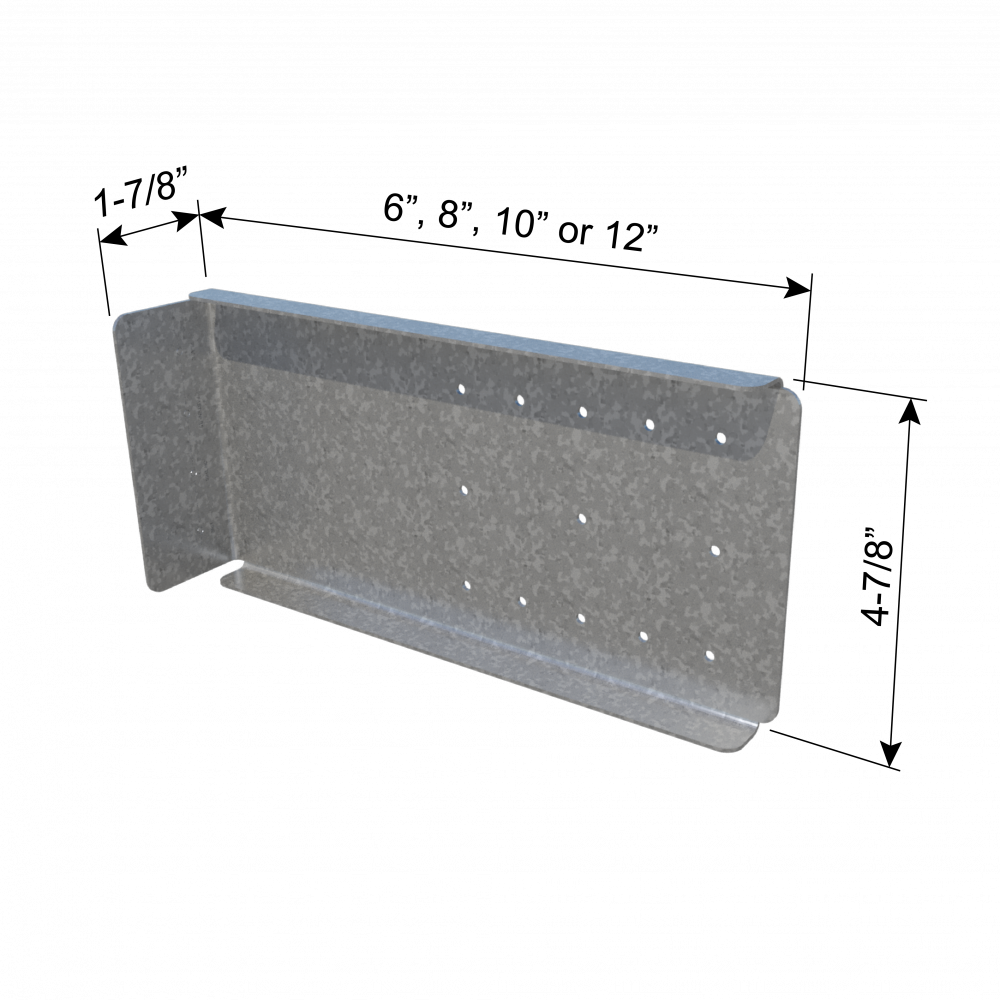

ClarkDietrich UXRC12 UNI-CLIP™ EXT RIGID CLIP 4-7/8" x 12" x 1-7/8" x 68mils (14ga) (bucket of 25)

Product Description

ClarkDietrich’s Extended Uni-Clip™ rigid framing clip is used to attach exterior wall studs to the structure of the building, creating a rigid connection. This clip is designed to transfer horizontal and vertical loads, the extended rigid clips install easily with screws, powder-actuated fasteners, or welds. This clip is ideal for all medium and large standoff conditions. Installation: Attach the Extended Uni-Clip rigid clips to cold-formed steel framing members using #12 minimum self-drilling screws driven through the clip holes into the steel framing. Follow the required fastener placement patterns to achieve the allowable load. Connections to the primary building frame can also be made with powder-actuated fasteners or welds per design requirement.

Product Information

• Sold as 25 per bucket
• Dimensions: 4-7/8" x 12" x 1-7/8" x 68mils (14ga)
• Rigid connection of exterior wall studs to primary structure.
• Medium to large standoff conditions.
• G90 galvanized coating.
