ClarkDietrich UXRC-HD 6IN WITH 5/8IN ANCHOR 4-1/4" x 6" x 1-1/2" x 68mils (14ga) (bucket of 25)

Product Description

ClarkDietrich’s UXRC6-HD 68mils (14ga) rigid framing clip offers a robust solution for rigid attachment of exterior wall studs to the primary building structure. Designed to transfer both horizontal and vertical loads, this clip is particularly well-suited for medium and large standoff conditions, providing exceptional support and stability. This clip features a 5/8" hole in the short leg of the clip that allows for a 1/2" concrete anchor to be attached to the slab. Additionally, there are two 3/8" holes that allow 1/4" anchors. Installation: 1- Attach the Extended Uni-Clip rigid clips to the cold-formed steel (CFS) framing members using #12 self-drilling screws at minimum, inserting the screws through the clip holes and driving them into the steel framing. Follow the specified fastener placement patterns in the manufacturer's published table to ensure compliance with allowable load requirements. 2- Attachment to the primary structure concrete slab can be made with one 1/2" or two 1/4" bolt anchors. Anchor connection design and edge distance requirements must be approved by a design professional before installation.

Product Information

• Sold as 25 per bucket

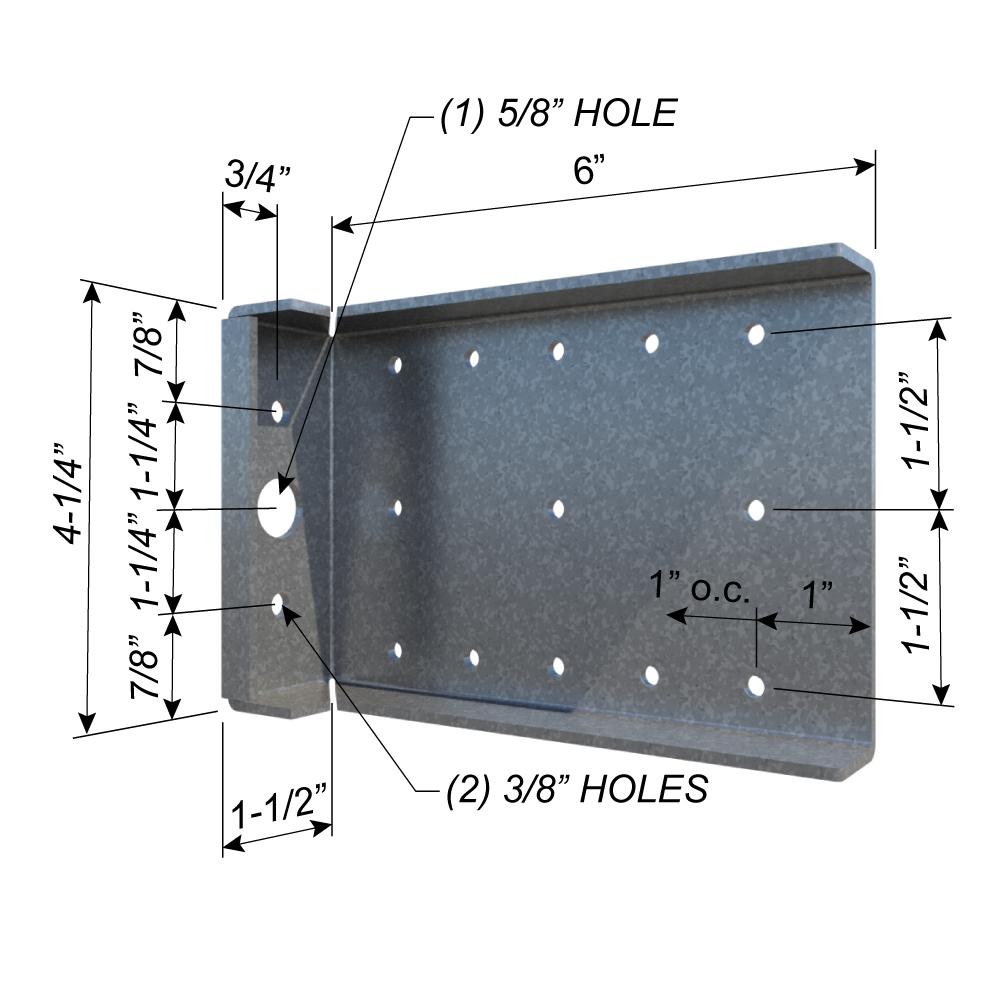

• Dimensions: 4-1/4" x 6" x 1-1/2" x 68mils (14ga)
• Rigid connection of exterior wall studs to primary structure.
• Ideal for medium to large standoff conditions.
• Compatible with 1/2" and 1/4" bolt anchors.
• G90 galvanized coating.
