ClarkDietrich UBC10-68 UNIVERSAL BYPASS CLIP 10" x 4-7/8" x 1-7/8" x 68mils (14ga)

Product Description

Universal Bypass Clips are used to attach exterior curtain wall studs to the building structure and provide either a rigid connection or deflecting connection for vertical building movement up to 3" independent of the cold-formed steel framing. The clips are available in standard lengths of 6", 8”, 10” and 12” and are ideal for medium to larger standoff conditions. Universal Bypass Clips install quickly with screws, welds or powder-actuated fasteners, and provide adjustable standoff to ensure a plumb wall plane. For deflection application, proprietary deflection screws are provided with each clip to ensure friction-free sliding. See our blog for more information about designing to accommodate for building movement. Installation: Connections to the building can be made with screws, welds powder-actuated fasteners. Mechanical fasteners shall be located on the embossed marks given on the scored line of the 1-7/8" flange. Attach building anchors to the structure according to the manufacture’s instructions. Anchors shall be installed through the embossments on the scored line of the clip as shown on the attached drawings. In no case shall anchors be installed more than 3/4" from the bend on the short leg of the clip. In cases of discrepancy between this information and the Design Engineer’s details, the Design Engineer’s details shall be followed. For a Rigid Connection: Attach the Universal Bypass Clip to cold-formed steel framing members using (6) #10-16 minimum self-drilling screws (not included) for the 14ga clip and (6) #12-14 minimum self-drilling screws (not included) for the 12ga clip through the clip holes into the steel framing. For a Deflection Connection: Attach the Universal Bypass Clip to the cold-formed steel framing using (3) #14 proprietary deflection screws (included) through the (3) slotted holes and positioned to allow for the appropriate building deflection.

Product Information

• Sold per piece

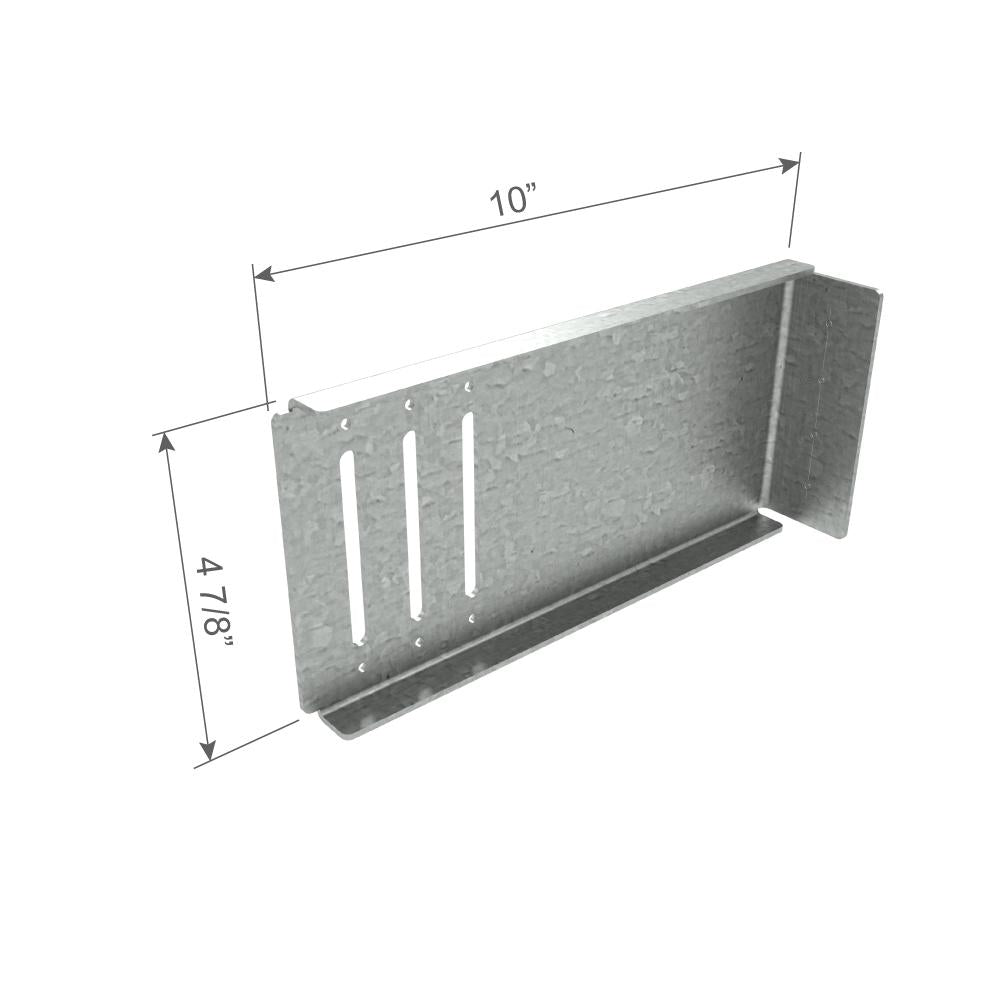

• Dimensions: 10" x 4-7/8" x 1-7/8" x 68mils (14ga)
• Eliminates shims and scabs.
• Provides vertical movement up to 3" (1-1/2" up and 1-1/2" down) when installed as a deflection application.
• Specially designed to simplify welding installation.
• Fast, one-piece universal installation. No left or right handed clips.
• Proprietary deflection screws provide frictionless slip connections. One bag (80 screws) included.
