ClarkDietrich U549 CLIP ANGLE 16GA 9-3/4" x 1-1/2" x 1-1/2" x 54mils (16ga) (bucket of 100)

Product Description

EasyClip™ U-Series™ Clip Angles are used to secure U-channel to wall studs for lateral bridging or in miscellaneous rigid connections. U-channel is passed through the stud knockout, and an EasyClip™ U-Series™ clip is attached using screws or by welding to create a rigid connection. These clips are pre-punched for improved fastener placement accuracy. EasyClip™ U-Series™ clips are designed to streamline installation. Note that U-Series™ clip angles and U-channel should not be used in bridging applications when the stud width exceeds 8". Installation: Insert the U-Channel into the stud punchout (as specified by design) and rotate it into position. Attach the U-Series clip angles horizontally to the outside or hard side of the cold-formed steel (CFS) framing members. Make sure that the clip is securely seated against the web of the U-channel and is not more than 1/4" less than the cold-formed framing member. Fasten the U-Series clips using #10 (minimum) self-drilling screws by driving through the clip holes and into the steel framing. Alternatively, clips may be welded to the CFS framing.

Product Information

• Sold as 100 per bucket
• Dimensions: 9-3/4" x 1-1/2" x 1-1/2" x 54mils (16ga)
• 1-1/2" x 1-1/2" legs.

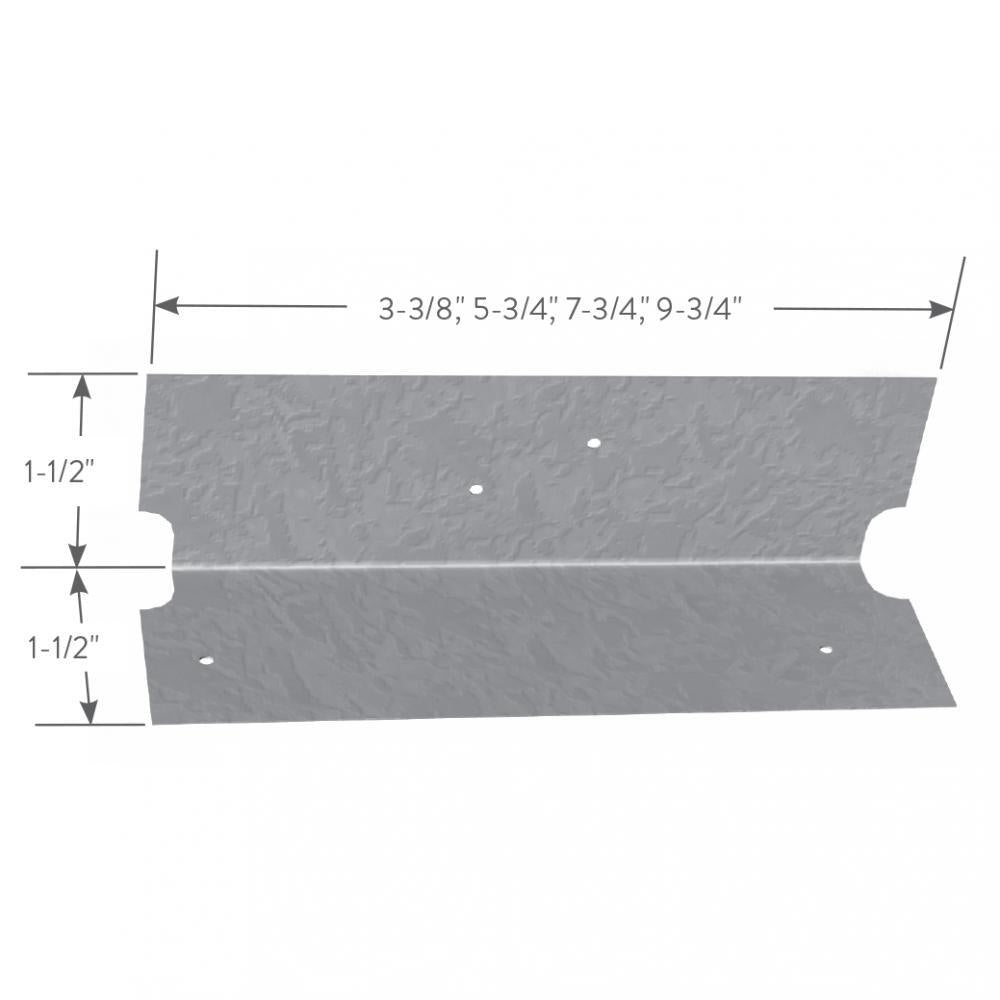

• Lengths available in 3-3/8", 5-3/4", 7-3/4" and 9-3/4".
• Prepunched for faster and more accurate fastener placement.
