The Steel Network (VLB800) MasterClip® VLB - Hybrid Vertical Deflection/Rigid Exterior Bypass Slab - LSF Connector 8" x 5" x 1-1/2" x 68mils (14ga) (box of 50)

Product Description

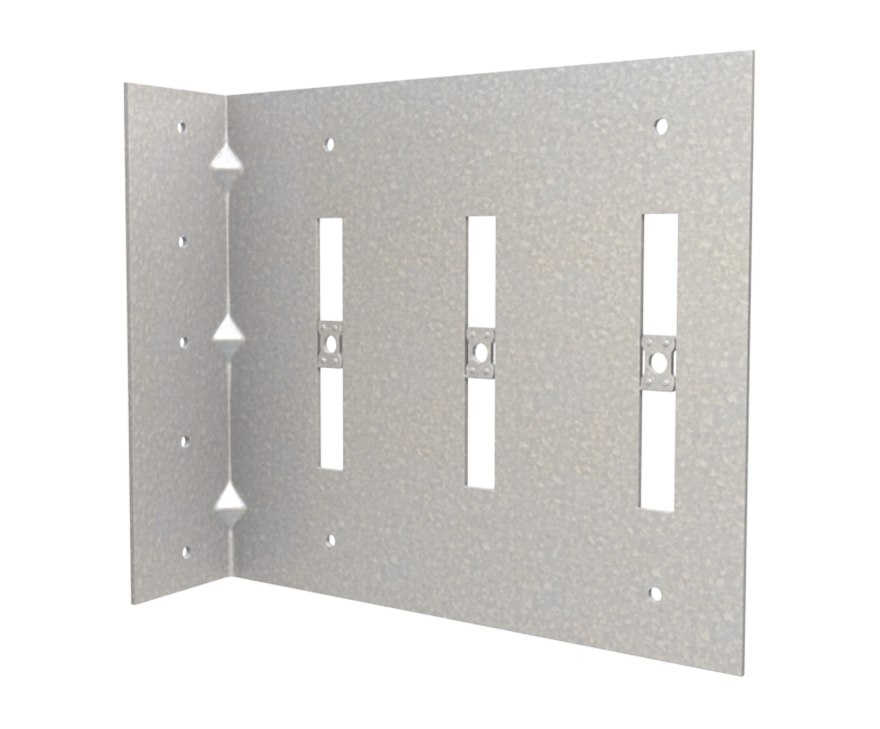

The MasterClip® VLB is designed to provide an efficient and versatile solution for connecting exterior cold-formed steel curtain wall studs to the slab, bypassing the primary structure. This dual-purpose clip can function either as a rigid connection to resist vertical and horizontal loads or as a vertical deflection connection, making it ideal for a variety of structural applications. Its patented Integrated Break-Away Step Bushings ensure friction-free motion for smooth vertical deflection, accommodating up to 2" of movement (1" up and 1" down). This clip simplifies the ordering process by serving both rigid and deflection purposes, reducing the need for multiple products.

Product Information

• Sold as 50 per box
• Dimensions: 8" x 5" x 1-1/2" x 68mils (14ga)
• Connects curtain wall studs to the slab, resisting both vertical and horizontal loads or allowing for vertical deflection.
• Patented Integrated Break-Away Step Bushings provide friction-free motion for smooth vertical deflection.
• Eliminates the need for loose friction-held assemblies, heavy deep-leg track, and top rows of wall bridging or strapping.
• Load-rated #12 screws provided for vertical deflection connection to the stud web.
• Manufactured with certified, 68mil, 50ksi cold-formed steel for durability and strength.
