The Steel Network

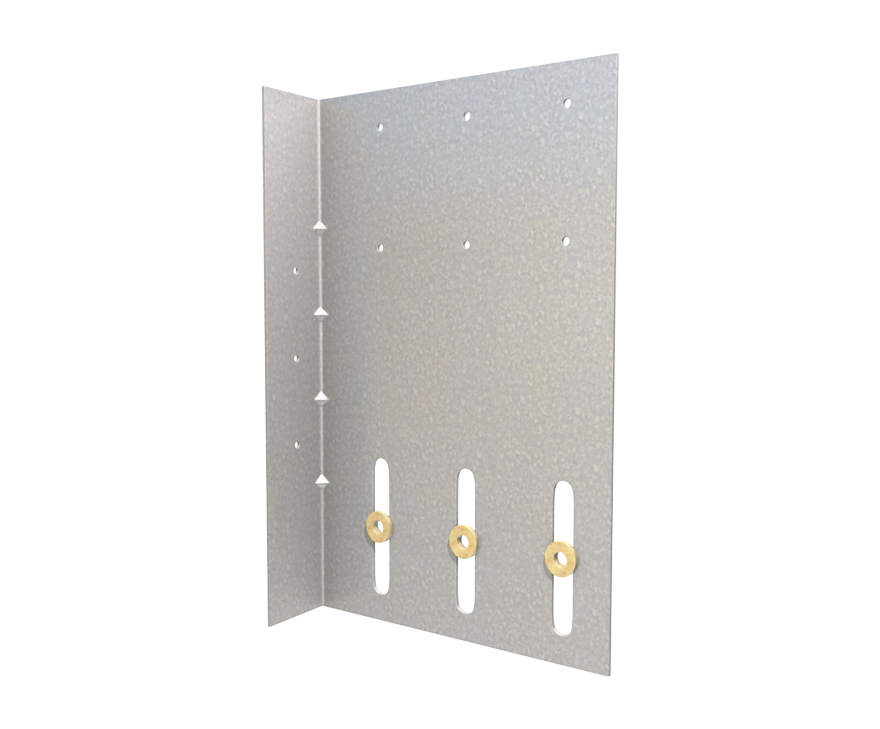

The Steel Network (Splice600) VertiClip® Splice - Clip Connector for Light Steel Framing to splice two wall sections together with vertical deflection 9" x 6" x 1-1/2" x 68mils (14ga) (box of 50)

The Steel Network (Splice600) VertiClip® Splice - Clip Connector for Light Steel Framing to splice two wall sections together with vertical deflection 9" x 6" x 1-1/2" x 68mils (14ga) (box of 50)

Regular price $612.86 USD
Regular price Sale price $612.86 USD
Sale Sold out

Product Description

The VertiClip Splice series is designed for situations where a bypass rigid stud needs to be connected to the structure while simultaneously attaching another wall stud below. It allows for up to 2” of vertical deflection, making it an efficient solution for non-axial load-bearing studs. Engineered for use with 6” or 8” studs, VertiClip Splice offers a tested, cost-effective alternative for such connections. The patented Step Bushing Technology ensures smooth vertical deflection without friction, enhancing overall performance.

Product Information

  • Sold as 50 per box
  • Dimensions: 9" x 6" x 1-1/2" x 68mils (14ga)
  • Vertical Deflection: Allows up to 2” of deflection for structural flexibility.
  • Patented Step Bushing Technology: Provides friction-free motion, preventing wear.
  • Load-Rated: Positive mechanical attachment at each stud using included #12 screws.
  • Construction: Manufactured from 68mil, 50ksi certified cold-formed steel.
  • Web Stiffener: Acts as a web stiffener for added structural support.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
