The Steel Network

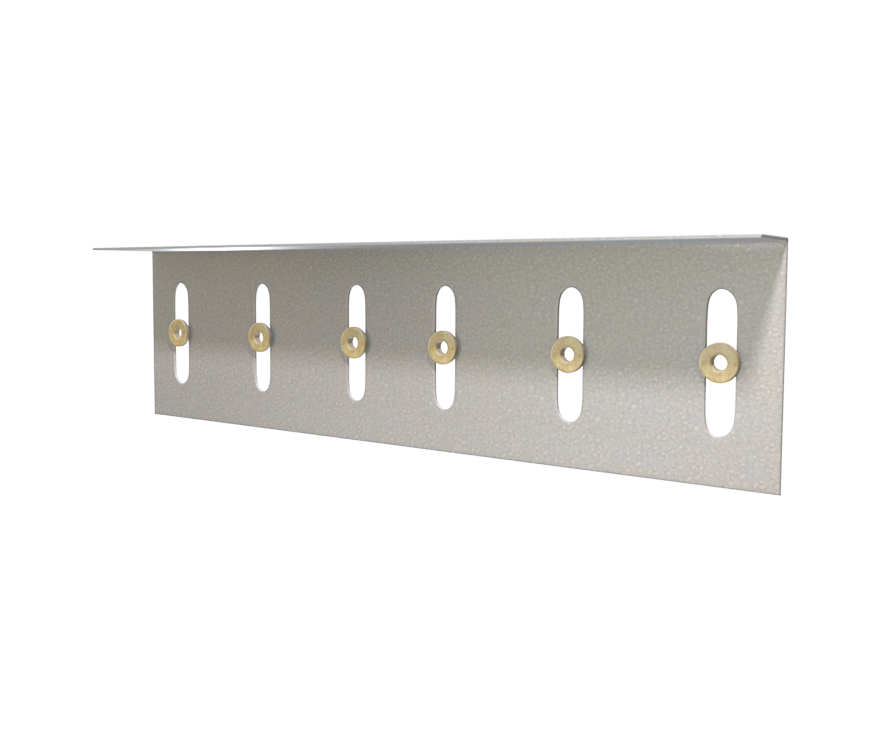

The Steel Network (SLS362-400-9) VertiClip® SLS - Exterior Steel Beam Bypass Deflection Clip Connector for Light Steel Framing 9' x 1-1/2" x 3-1/8" x 68mils (14ga) (box of 50)

The Steel Network (SLS362-400-9) VertiClip® SLS - Exterior Steel Beam Bypass Deflection Clip Connector for Light Steel Framing 9' x 1-1/2" x 3-1/8" x 68mils (14ga) (box of 50)

Regular price $292.14 USD
Regular price Sale price $292.14 USD
Sale Sold out

Product Description

The VertiClip® SLS is a vertical deflection strut designed for connecting exterior cold-formed steel curtain wall studs to a structural steel frame in situations where large stand-off conditions exist. By bypassing the primary structure, the VertiClip SLS allows for up to 1½” of vertical deflection (¾” up and ¾” down). With TSN's patented Step Bushing Technology, the clip ensures a smooth, anti-friction connection between the stud and clip, optimizing performance and ease of installation, even in complex configurations.

Product Information

  • Sold as 50 per box
  • Dimensions: 9' x 1-1/2" x 3-1/8" x 68mils (14ga)
  • Purpose: Connects curtain wall studs to structural steel frames with large stand-off conditions, bypassing the primary structure.
  • Vertical Deflection: Allows for 1½” total movement (¾” up, ¾” down).
  • Patented Technology: Step Bushing Technology enables smooth, friction-free vertical deflection.
  • Approvals: ICC-ES Approved (ESR-2049) and LARR Approved (25631).
  • Durability: Made from certified, 50ksi, 68mil, G90 cold-formed steel.
  • Efficiency: Includes load-rated #12 screws and eliminates the need for extra bridging or deep-leg tracks.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.

View full details
