The Steel Network (SLS362-400-12) VertiClip® SLS - Exterior Steel Beam Bypass Deflection Clip Connector for Light Steel Framing 12' x 1-1/2" x 3-1/8" x 68mils (14ga) (box of 50)

Product Description

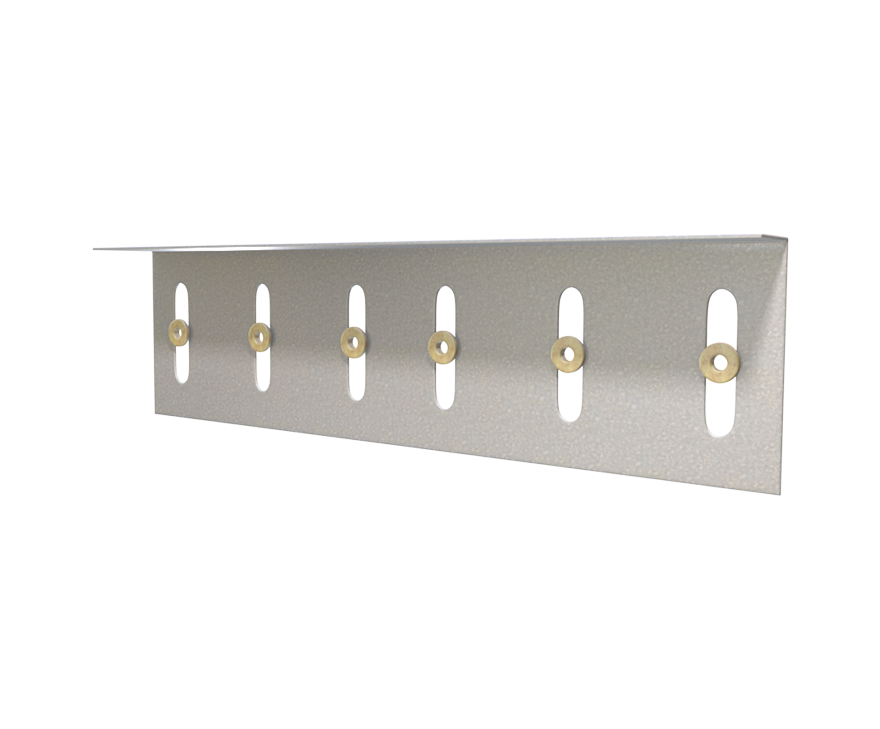

The VertiClip® SLS is a vertical deflection strut designed for connecting exterior cold-formed steel curtain wall studs to a structural steel frame in situations where large stand-off conditions exist. By bypassing the primary structure, the VertiClip SLS allows for up to 1½” of vertical deflection (¾” up and ¾” down). With TSN's patented Step Bushing Technology, the clip ensures a smooth, anti-friction connection between the stud and clip, optimizing performance and ease of installation, even in complex configurations.

Product Information

• Sold as 50 per box
• Dimensions: 12' x 1-1/2" x 3-1/8" x 68mils (14ga)
• Purpose: Connects curtain wall studs to structural steel frames with large stand-off conditions, bypassing the primary structure.
• Vertical Deflection: Allows for 1½” total movement (¾” up, ¾” down).
• Patented Technology: Step Bushing Technology enables smooth, friction-free vertical deflection.
• Approvals: ICC-ES Approved (ESR-2049) and LARR Approved (25631).
• Durability: Made from certified, 50ksi, 68mil, G90 cold-formed steel.
• Efficiency: Includes load-rated #12 screws and eliminates the need for extra bridging or deep-leg tracks.
