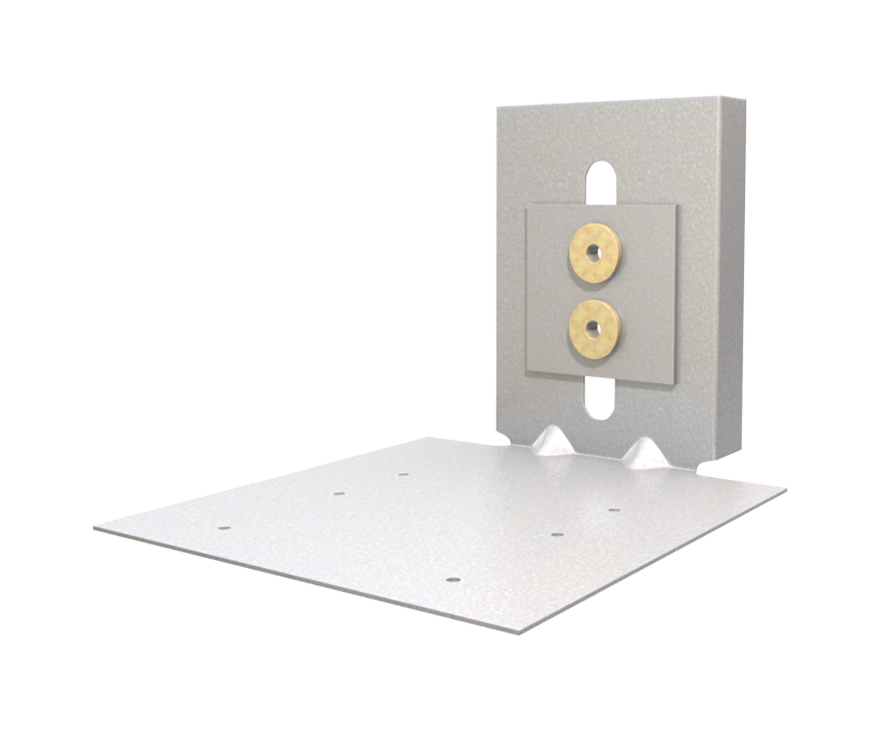

The Steel Network (SLF162) VertiClip® SLF - Exterior Slab Top Bypass (Inaccessable Stud Web) Deflection Clip 5" x 4-1/2" x 3-813/1000" x 68mils (14ga) (box of 25)

Product Description

The VertiClip® SLF is designed for securing exterior cold-formed steel curtain wall studs to the slab when the stud web is inaccessible, providing a reliable solution while bypassing the primary structure. It allows for up to 1½” of vertical deflection (¾” up and ¾” down) and can accommodate an offset of up to 1½” between the stud and primary structure. With TSN’s patented Step Bushing Technology, the clip ensures smooth, friction-free vertical movement, eliminating the need for heavy deep-leg tracks or extra wall bracing, making installation more efficient and secure.

Product Information

• Sold as 25 per box
• Dimensions: 5" x 4-1/2" x 3-813/1000" x 68mils (14ga)
• Purpose: Connects steel curtain wall studs to the slab, bypassing the primary structure with an inaccessible stud web.
• Vertical Deflection: Allows for up to 1½” (¾” up, ¾” down) vertical movement.
• Patented Technology: Step Bushing Technology ensures friction-free, smooth deflection.
• Custom Design: VertiClip SLF for 2" stud flanges is available as a custom part.
• Durable Construction: Manufactured from certified, 50ksi, 68 mil, G90 cold-formed steel.
• Installation Efficiency: Includes load-rated #12 screws for secure attachment and eliminates the need for extra bridging or heavy deep-leg track.
