The Steel Network (SLD800) VertiClip® SLD - Interior/Exterior Head of Wall Deflection Clip Connector for Light Steel Framing 8" x 3" x 1-1/2" x 33mils (20ga) (box of 100)

Product Description

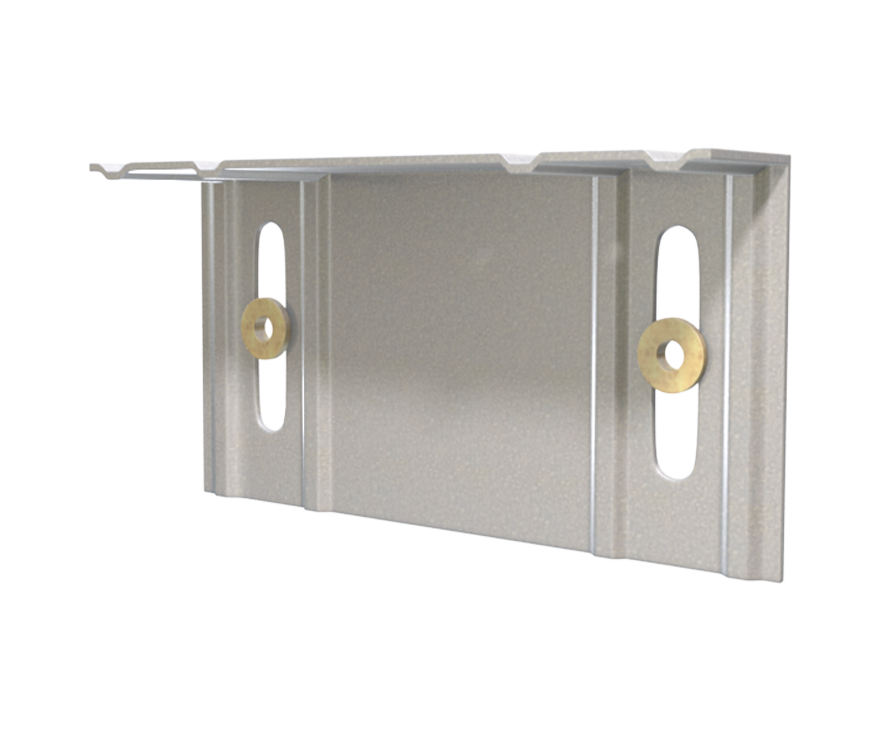

The VertiClip® SLD is a slide angle clip designed to connect metal studs to the deck or primary structure at the top of the wall, allowing for up to 1½” vertical deflection (¾” up and ¾” down). It features TSN’s patented Step Bushing Technology, providing a friction-free, anti-seizure connection between the clip and the stud web surface. Ideal for both fire-rated and non-fire-rated assemblies, this clip simplifies installation by eliminating the need for heavy deep-leg tracks and top-row bridging. With certifications including ICC-ES, UL, and NY MEA, the VertiClip® SLD offers reliable performance and durability.

Product Information

• Sold as 100 per box
• Dimensions: 8" x 3" x 1-1/2" x 33mils (20ga)
• Purpose: Connects metal studs to the deck at the top of the wall, allowing for up to 1½” vertical deflection.
• ICC-ES & NY MEA Approved: Certified under ICC-ES report ESR-2049 and NY MEA report #326-06-M.
• UL Classified: Suitable for dynamic assemblies with 1½” deflection and 1-2 hour fire-ratings.
• Load-Rated Positive Attachment: Features load-rated #8 screws for secure vertical deflection connection to the stud web.
• Patented Step Bushing Technology: Provides smooth, friction-free movement.
• High Durability: Manufactured with certified 50ksi, 33 mil, G90 cold-formed steel.
