The Steel Network (SLB600-12) VertiClip® SLB - Exterior Slab Bypass Deflection Connector for Light Steel Framing 6" x 5" x 1-1/2" x 68mils (14ga) (box of 25)

The Steel Network (SLB600-12) VertiClip® SLB - Exterior Slab Bypass Deflection Connector for Light Steel Framing 6" x 5" x 1-1/2" x 68mils (14ga) (box of 25)

Regular price $228.57 USD
Regular price Sale price $228.57 USD
Sale Sold out

Product Description

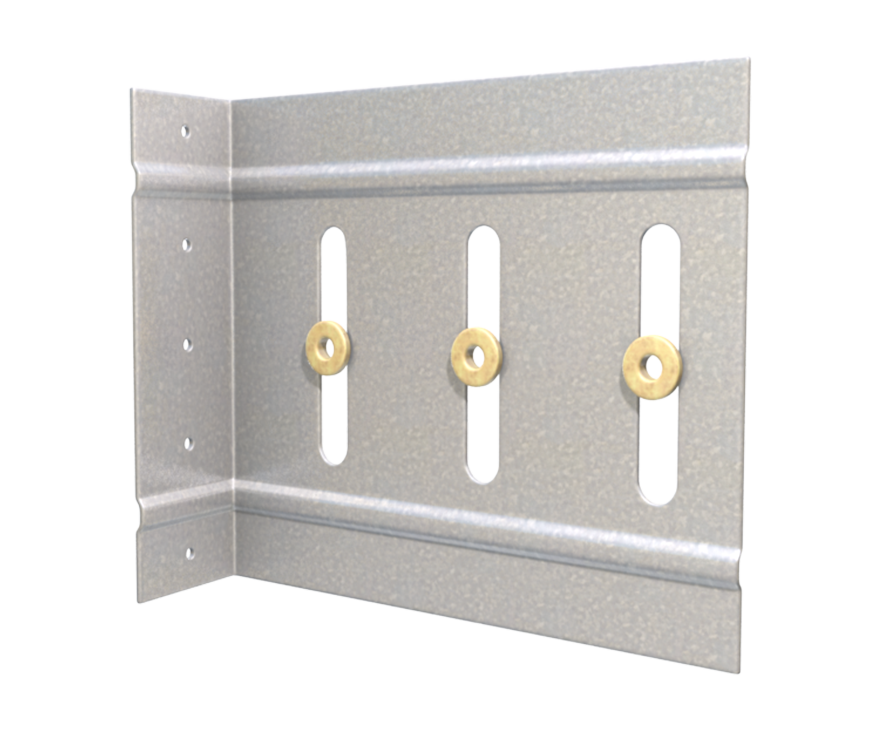

The VertiClip SLB is a vertical deflection clip engineered to securely connect exterior cold-formed steel curtain wall studs to the slab while bypassing the primary structure, accommodating up to 2” of vertical deflection (1” up and 1” down). Featuring TSN’s patented Step Bushing Technology, the clip ensures a smooth, anti-friction connection between the stud web surface and the clip, enhancing the durability and reliability of the structure.

Product Information

  • Sold as 25 per box
  • Dimensions: 6" x 5" x 1-1/2" x 68mils (14ga)
  • Purpose: Connects curtain wall studs to the slab, bypassing the primary structure, allowing vertical deflection of up to 2" (1" up and down).
  • ICC-ES Approved: Report #ESR-2049 confirms certified performance.
  • Versatile Attachment: Can be attached to the structure using PAF (powder-actuated fasteners) or welds.
  • Load-Rated Connection: Provides a positive mechanical attachment at each stud with load-rated #12 screws.
  • Friction-Free Deflection: Patented Step Bushing Technology allows smooth vertical movement.
  • Simplifies Construction: Eliminates the need for loose assemblies, deep-leg tracks, and extra bridging.
  • Durable Construction: Made from 50ksi, 68 mil, G90 cold-formed steel for long-lasting performance.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
