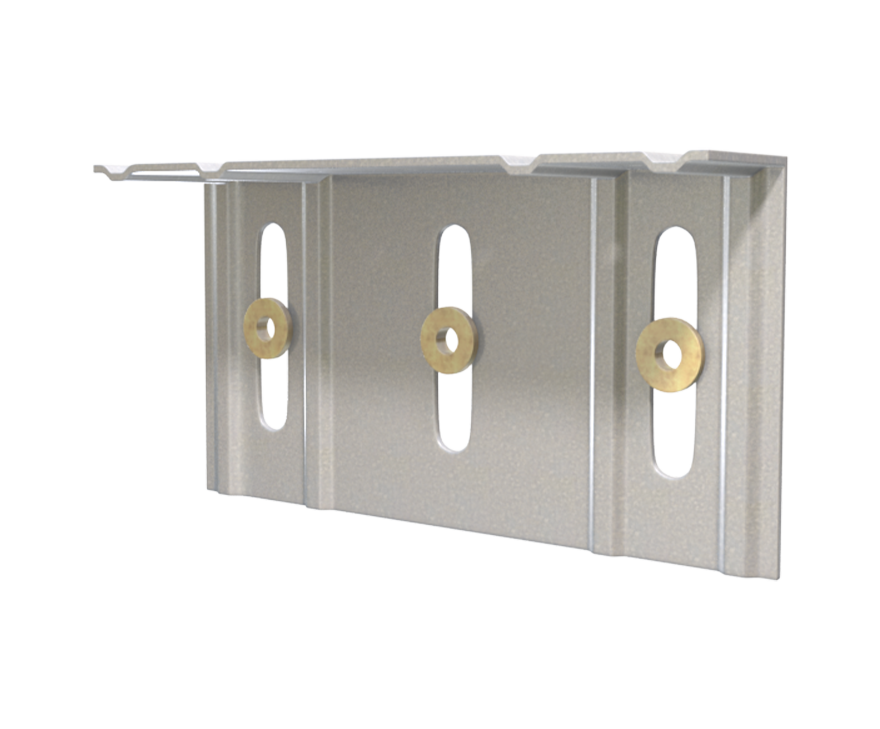

The Steel Network (SL362) VertiClip® SL - Exterior Head of Wall Vertical Deflection Connector for Light Steel Framing. 3-5/8" x 3" x 1-1/2" x 68mils (14ga) (box of 100)

Product Description

The VertiClip® SL is a slide angle clip specifically designed to connect exterior cold-formed steel curtain wall studs to the primary structure at the head of the wall, accommodating up to 1 ½” of vertical deflection (¾” up and down). With TSN’s patented Step Bushing Technology, this slide angle clip ensures a smooth, friction-free connection between the clip and the stud web surface, preventing seizure and maintaining structural integrity.

Product Information

• Sold as 100 per box
• Dimensions: 3-5/8" x 3" x 1-1/2" x 68mils (14ga)
• Purpose: Connects curtain wall studs to the primary structure, allowing vertical deflection up to 3/4" up and down.
• ICC-ES Approved: Report #ESR-2049 for certified performance.
• Friction-Free Motion: Patented Step Bushing Technology for smooth deflection.
• Load-Rated Attachment: Secure mechanical connection at each stud with load-rated #12 screws.
• Eliminates Extra Components: No need for loose friction-held assemblies, deep-leg tracks, or top-row bridging.
• Durable Construction: Made from 50ksi, 68mil, G90 cold-formed steel.
• Integrated Solution: Component in the VertiTrack® VTX pre-assembled deflection track system.
