The Steel Network

The Steel Network (SL1000) VertiClip® SL - Exterior Head of Wall Vertical Deflection Connector for Light Steel Framing. 10" x 3" x 1-1/2" x 68mils (14ga) (box of 50)

The Steel Network (SL1000) VertiClip® SL - Exterior Head of Wall Vertical Deflection Connector for Light Steel Framing. 10" x 3" x 1-1/2" x 68mils (14ga) (box of 50)

Regular price $330.00 USD
Regular price Sale price $330.00 USD
Sale Sold out

Product Description

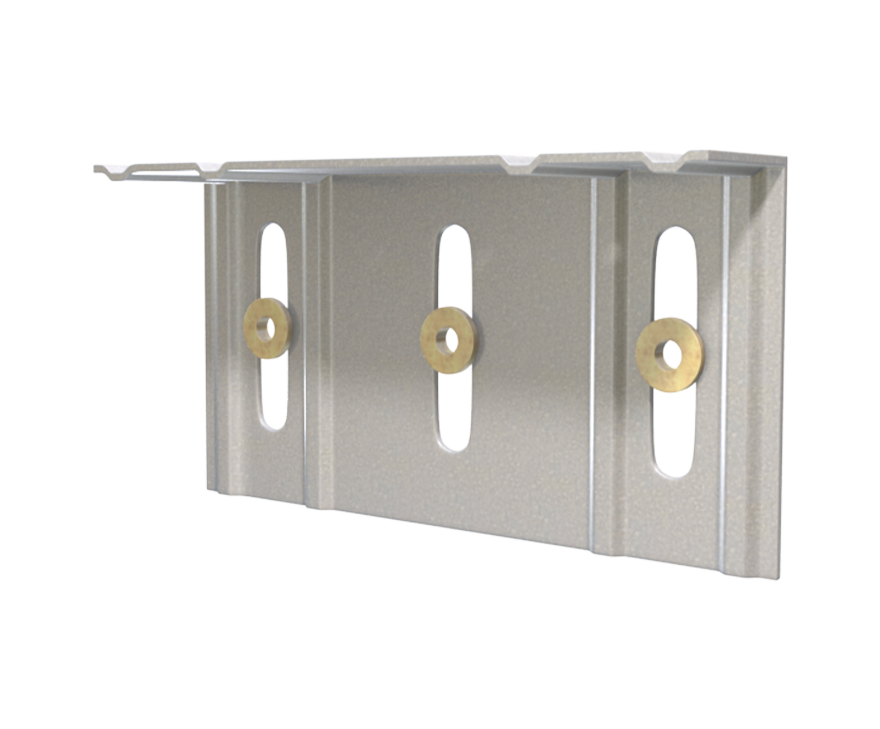

The VertiClip® SL is a slide angle clip specifically designed to connect exterior cold-formed steel curtain wall studs to the primary structure at the head of the wall, accommodating up to 1 ½” of vertical deflection (¾” up and down). With TSN’s patented Step Bushing Technology, this slide angle clip ensures a smooth, friction-free connection between the clip and the stud web surface, preventing seizure and maintaining structural integrity.

Product Information

  • Sold as 50 per box
  • Dimensions: 10" x 3" x 1-1/2" x 68mils (14ga)
  • Purpose: Connects curtain wall studs to the primary structure, allowing vertical deflection up to 3/4" up and down.
  • ICC-ES Approved: Report #ESR-2049 for certified performance.
  • Friction-Free Motion: Patented Step Bushing Technology for smooth deflection.
  • Load-Rated Attachment: Secure mechanical connection at each stud with load-rated #12 screws.
  • Eliminates Extra Components: No need for loose friction-held assemblies, deep-leg tracks, or top-row bridging.
  • Durable Construction: Made from 50ksi, 68mil, G90 cold-formed steel.
  • Integrated Solution: Component in the VertiTrack® VTX pre-assembled deflection track system.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
