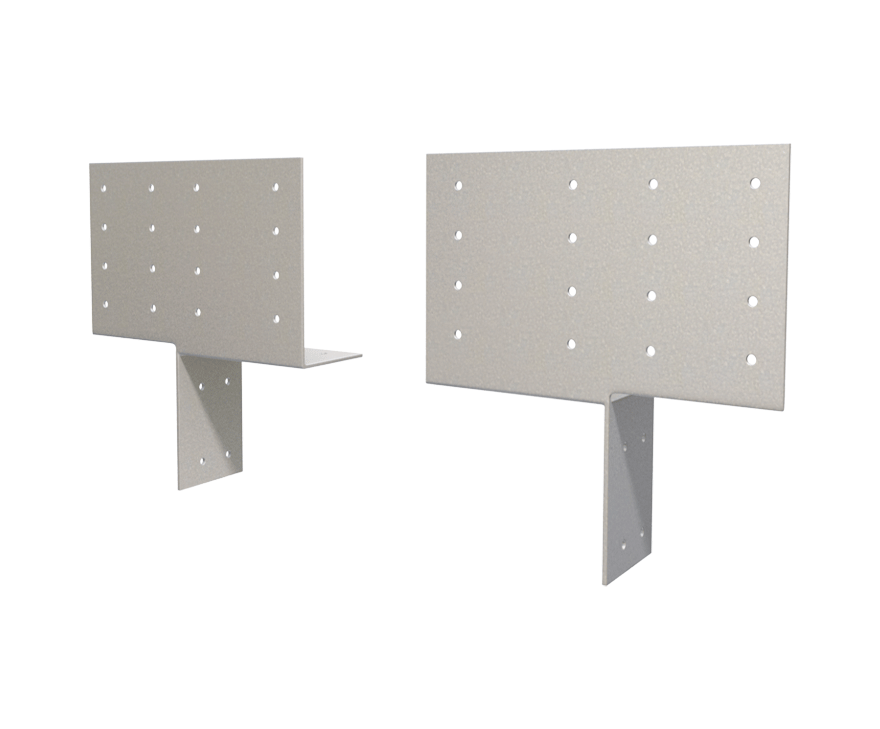

The Steel Network (HE(S)) StiffClip® HE - Header Clip Connector for Cold-Formed Steel Framing - L&R Pair 5-3/4" x 3-1/2" x 3-1/4" x 2-5/8" x 1-3/4" x 1-5/8" x 43mils (18ga) (box of 25)

Product Description

The StiffClip HE Series is designed to connect beams to columns or headers to jambs, efficiently transferring the load from the column. This series features a small shelf tab for precise alignment of JamStud® or box headers during installation. Available in HE(L) and HE(H) models for typical box headers, which include stiffened ribs to prevent web crippling, and HE(S) for single TSN JamStud headers. The guide holes ensure secure connections, while the design eliminates the need for jack studs or caps, reducing both material and labor costs. Extensively tested, the StiffClip HE Series provides a reliable, efficient solution for your structural needs.

Product Information

• Sold as 25 per box
• Dimensions: 5-3/4" x 3-1/2" x 3-1/4" x 2-5/8" x 1-3/4" x 1-5/8" x 43mils (18ga)
• Versatility: Connects beams to columns or headers to jambs.
• Load Resistance: Handles both vertical and horizontal loads.
• Web Stiffener: Protects header ends from web crippling.
• Installation: Shelf tabs for alignment and no need for jack studs or caps.
• Cost Efficiency: Reduces material use and labor expenses.
• Testing: Extensively tested for reliability.
