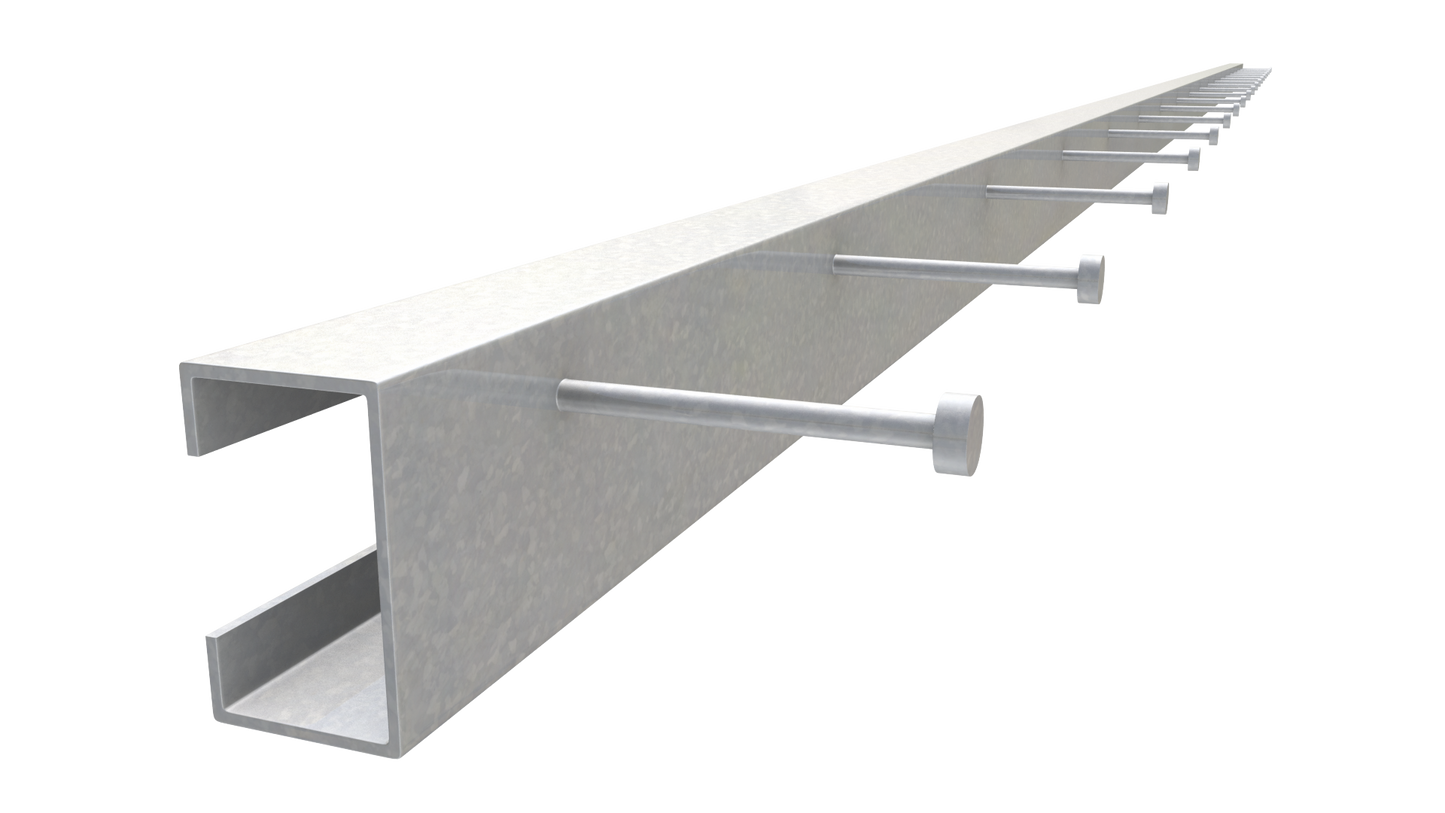

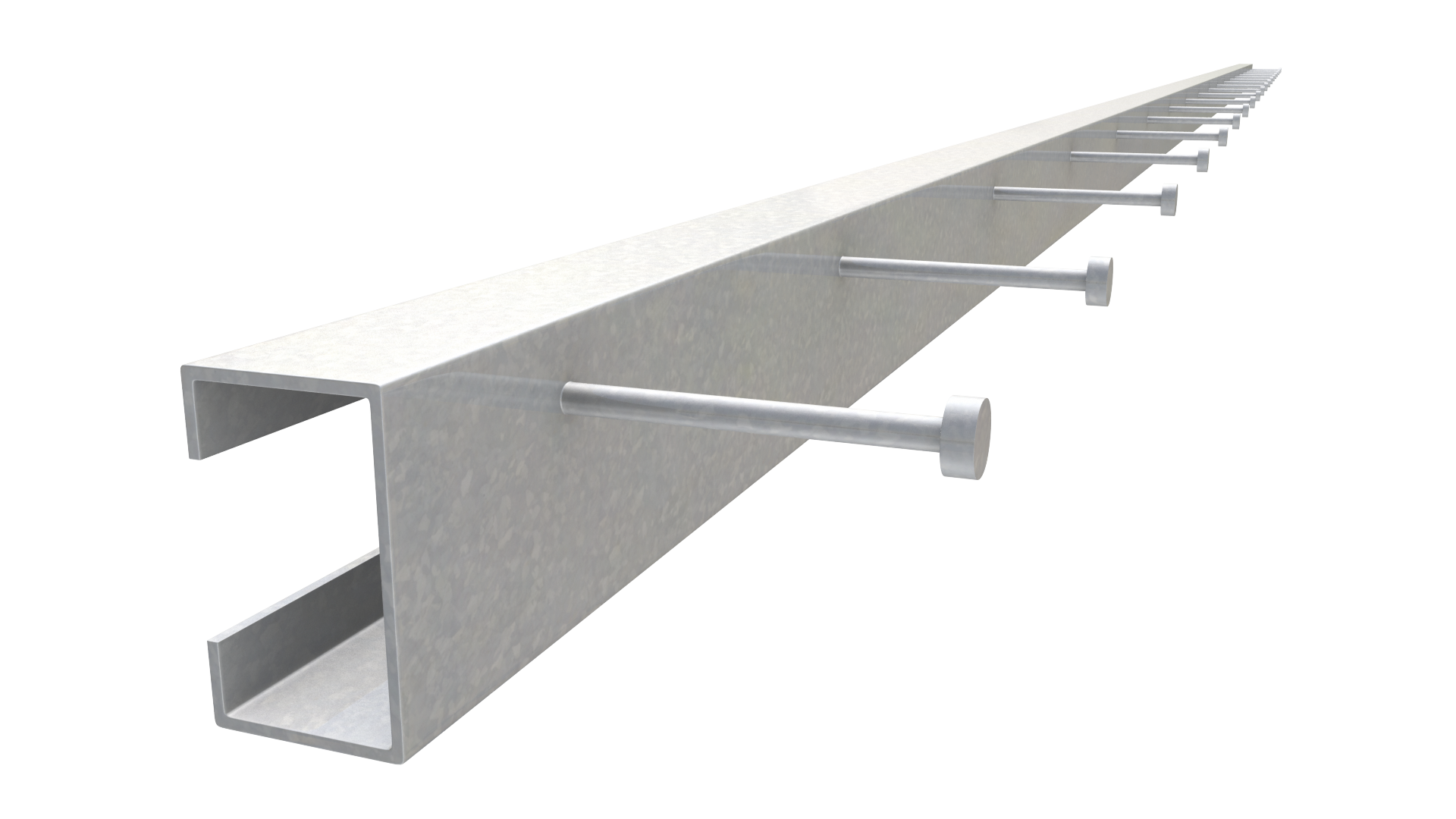

The Steel Network (DTLB800-PTS-L) DriftTrak® Headed Stud - PTS - Saves the time and expense of installing DriftTrak after the Post-Tensioned Concrete Slab (PTS) has been poured. (box of 50)

Product Description

The DriftTrak Post-Tensioned Slab system provides an efficient solution for connecting exterior cold-formed steel curtain wall studs to the primary structure, bypassing the slab. Unlike standard installations that require post-concrete installation, the DriftTrak Post-Tensioned Slab system can be integrated directly into the post-tensioned slab before pouring, saving significant time and reducing the need for lifts after the slab is poured. This system incorporates the studded DriftTrak member along with either the DriftTrak DTSLB slide angle for deflection or the DriftTrak DTLB rigid angle for fixed connections, depending on the project requirements.

Product Information

• Sold as 50 per box
• Dimensions:
• Locking Angle DT-LA available for locking horizontal movement of wall panels where no drift is required.
• DriftTrak DTH-PTS available in 12’ lengths for larger projects.
• Provides load-rated positive mechanical attachment at each stud for reliable performance.
• Patented Step Bushing Technology ensures friction-free motion for smooth vertical deflection.
• Eliminates loose friction-held assemblies, heavy deep-leg track, and top rows of wall bridging or strapping.
• Load-rated #12 screws provided for vertical deflection connections to the stud web.
• Track DTLB-PTS and DTSLB-PTS are manufactured with certified, 50ksi, 97mil, G90 cold-formed steel for superior strength and durability.
• DTSLB is made with certified, 50ksi, 68mil, G90 cold-formed steel, ensuring consistent quality.
