The Steel Network

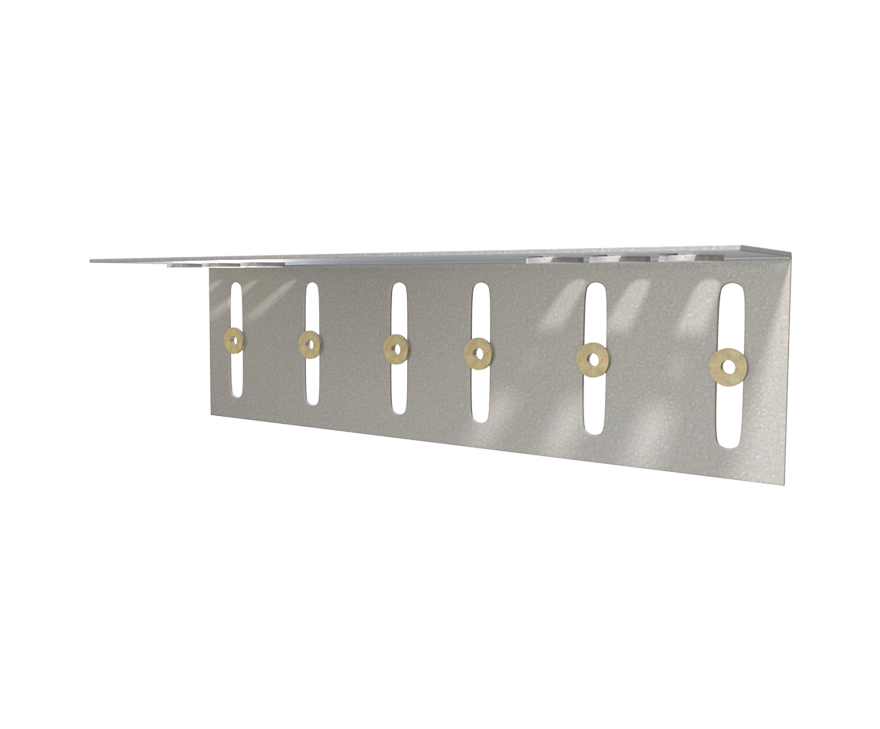

The Steel Network (DSLS600-12) DriftClip® DSLS - Exterior Bypass Structure Drift & Vertical Deflection Clip Connector for Cold-Formed Steel Framing 12" x 3-1/4" x 3-1/4" x 97mils (12ga) (box of 25)

The Steel Network (DSLS600-12) DriftClip® DSLS - Exterior Bypass Structure Drift & Vertical Deflection Clip Connector for Cold-Formed Steel Framing 12" x 3-1/4" x 3-1/4" x 97mils (12ga) (box of 25)

Regular price $614.64 USD
Regular price Sale price $614.64 USD
Sale Sold out

Product Description

The Drift Slide Angle Strut is designed to connect exterior cold-formed steel curtain wall studs to a structural steel frame, accommodating large stand-off conditions while bypassing the primary structure. It allows for up to 2 inches of vertical deflection (1 inch up and down) and 2 inches of lateral drift (1 inch left and right). Featuring TSN’s patented Step Bushing Technology, this strut ensures a friction-free, anti-seizure connection between the clip, stud web surface, and track. Compliant with ICC-ES standards and constructed from certified 50ksi, 97mil, G90 cold-formed steel, it offers a strong, efficient alternative to traditional assemblies and heavy deep-leg tracks.

Product Information

  • Sold as 25 per box
  • Dimensions: 12" x 3-1/4" x 3-1/4" x 97mils (12ga)
  • Purpose: Connects curtain wall studs to structural steel frame with allowances for vertical and lateral movement.
  • ICC-ES Approved: Report #ESR-2049 ensures compliance with building codes.
  • Secure Attachment: Load-rated mechanical connection at each stud.
  • Friction-Free Motion: Patented Step Bushing Technology for smooth vertical deflection.
  • Efficient Design: Replaces loose assemblies, heavy track, and top wall bridging/strapping.
  • Durable Construction: Made from certified, 50ksi, 97mil, G90 cold-formed steel.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
