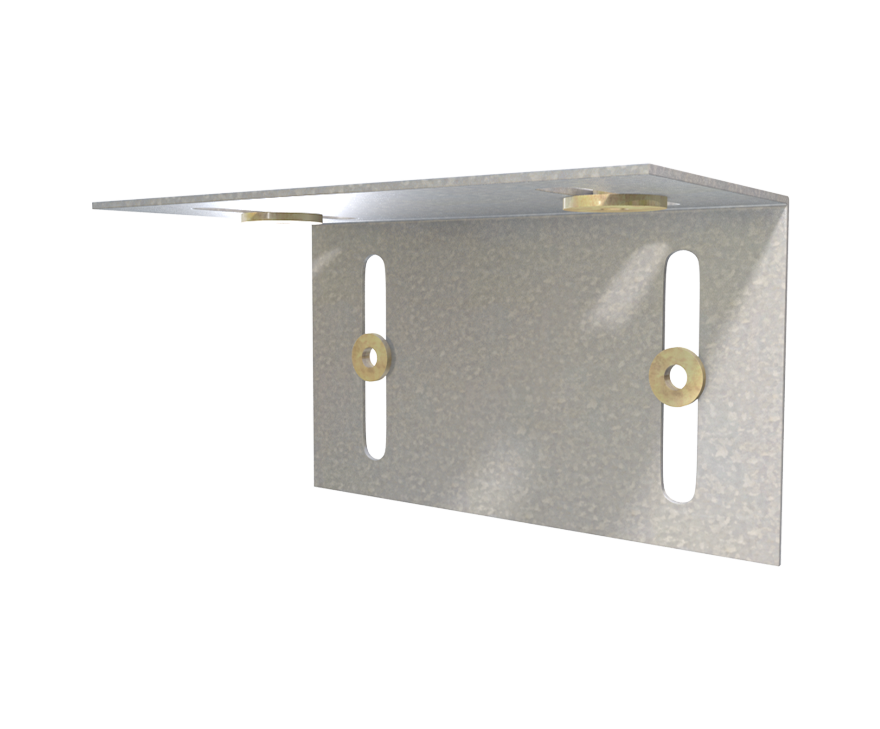

The Steel Network (DSLD362-400) DriftClip® DSLD - Exterior Head of Wall Drift & Vertical Deflection Clip Connector for Cold-Formed Steel Framing 3-5/8" x 3-1/4" x 3-1/4" x 33mils (20ga) (box of 100)

Product Description

The Drift Slide Angle is engineered to connect exterior cold-formed steel curtain wall studs to the primary structure at the head of the wall, accommodating up to 2 inches of vertical deflection (1 inch up and down) and 2 inches of lateral drift (1 inch left and right). Featuring TSN’s patented Step Bushing Technology, it ensures a friction-free, anti-seizure connection between the clip, stud web surface, and track. This component meets ICC-ES standards and is constructed from certified 50ksi, 33 mil, G90 cold-formed steel, providing a robust alternative to traditional loose assemblies and heavy deep-leg tracks.

Product Information

• Sold as 100 per box
• Dimensions: 3-5/8" x 3-1/4" x 3-1/4" x 33mils (20ga)
• Purpose: Connects curtain wall studs to the primary structure with allowances for vertical and lateral movement.
• ICC-ES Approved: Report #ESR-2049 ensures compliance with building codes.
• Secure Attachment: Load-rated mechanical connection at each stud.
• Friction-Free Motion: Patented Step Bushing Technology for smooth vertical deflection.
• Efficient Design: Replaces loose assemblies, heavy track, and top wall bridging/strapping.
• Durable Construction: Made from certified, 50ksi, 33 mil, G90 cold-formed steel.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
