The Steel Network

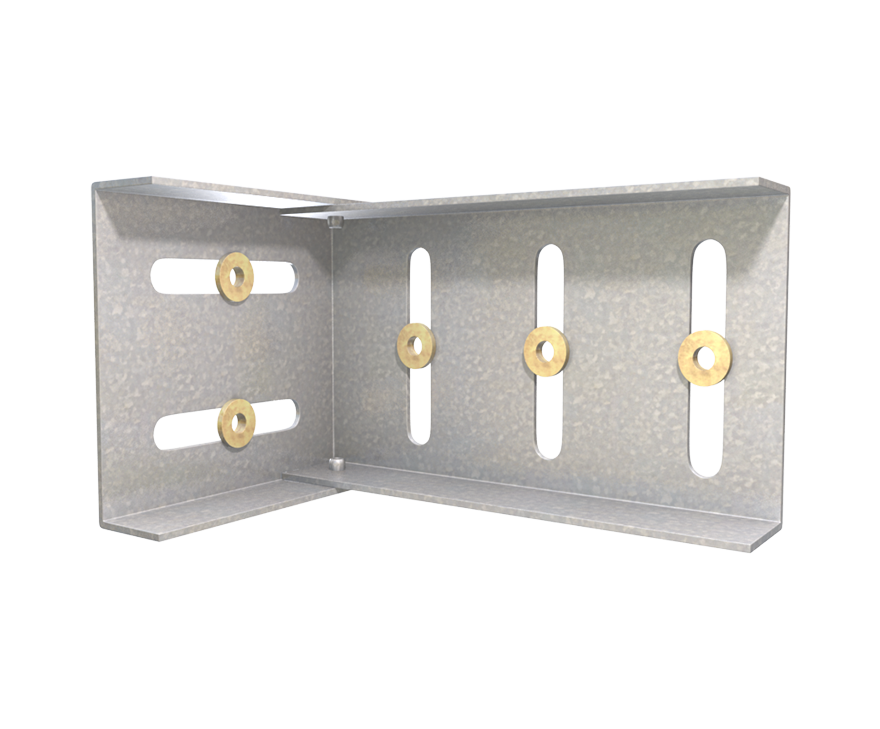

The Steel Network (DSLB600) DriftClip® DSLB - Exterior Bypass Slab Drift & Vertical Deflection Clip Connector for Cold-Formed Steel Framing 6" x 3-3/4" x 3-3/8" x 3-47/250" x 1" x 0-469/500" x 97mils (12ga) (box of 25)

The Steel Network (DSLB600) DriftClip® DSLB - Exterior Bypass Slab Drift & Vertical Deflection Clip Connector for Cold-Formed Steel Framing 6" x 3-3/4" x 3-3/8" x 3-47/250" x 1" x 0-469/500" x 97mils (12ga) (box of 25)

Regular price $412.50 USD
Regular price Sale price $412.50 USD
Sale Sold out

Product Description

The Drift Slide Angle is designed to connect exterior cold-formed steel curtain wall studs to the slab, bypassing the primary structure and allowing for vertical deflection up to 2 inches (1 inch up and down) and lateral drift up to 2 inches (1 inch left and right). It features TSN’s patented Step Bushing Technology, which ensures a friction-free and anti-seizure connection between the clip, stud web surface, and track. This solution meets ICC-ES standards and is built from certified 50ksi, 97mil, G90 cold-formed steel, providing a reliable, efficient alternative to loose friction-held assemblies and heavy deep-leg tracks.

Product Information

  • Sold as 25 per box
  • Dimensions: 6" x 3-3/4" x 3-3/8" x 3-47/250" x 1" x 0-469/500" x 97mils (12ga)
  • Purpose: Connects curtain wall studs to slab with allowances for vertical and lateral movement.
  • ICC-ES Approved: Report #ESR-2049 for compliance.
  • Secure Attachment: Load-rated mechanical connection at each stud.
  • Friction-Free Motion: Patented Step Bushing Technology for smooth operation.
  • Efficient Design: Replaces need for loose assemblies and heavy track.
  • Durable Construction: Made from certified, 50ksi, 97mil, G90 cold-formed steel.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
