The Steel Network (DSLB362-400) DriftClip® DSLB - Exterior Bypass Slab Drift & Vertical Deflection Clip Connector for Cold-Formed Steel Framing 3-5/8" x 3-3/4" x 3-3/8" x 3-47/250" x 1" x 0-469/500" x 97mils (12ga) (box of 50)

Product Description

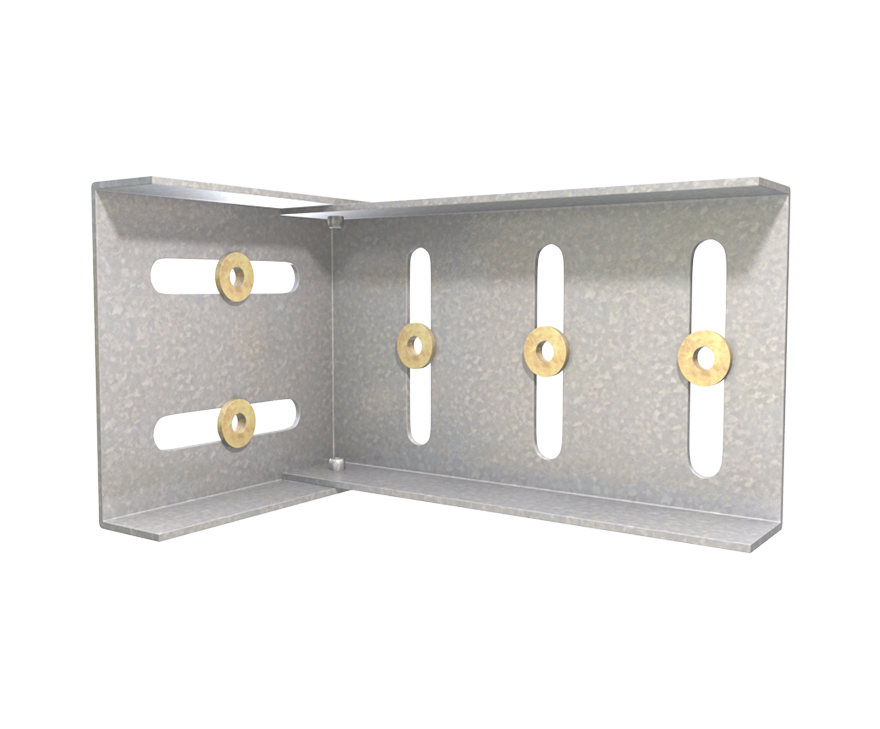

The Drift Slide Angle is designed to connect exterior cold-formed steel curtain wall studs to the slab, bypassing the primary structure and allowing for vertical deflection up to 2 inches (1 inch up and down) and lateral drift up to 2 inches (1 inch left and right). It features TSN’s patented Step Bushing Technology, which ensures a friction-free and anti-seizure connection between the clip, stud web surface, and track. This solution meets ICC-ES standards and is built from certified 50ksi, 97mil, G90 cold-formed steel, providing a reliable, efficient alternative to loose friction-held assemblies and heavy deep-leg tracks.

Product Information

• Sold as 50 per box
• Dimensions: 3-5/8" x 3-3/4" x 3-3/8" x 3-47/250" x 1" x 0-469/500" x 97mils (12ga)
• Purpose: Connects curtain wall studs to slab with allowances for vertical and lateral movement.
• ICC-ES Approved: Report #ESR-2049 for compliance.
• Secure Attachment: Load-rated mechanical connection at each stud.
• Friction-Free Motion: Patented Step Bushing Technology for smooth operation.
• Efficient Design: Replaces need for loose assemblies and heavy track.
• Durable Construction: Made from certified, 50ksi, 97mil, G90 cold-formed steel.
