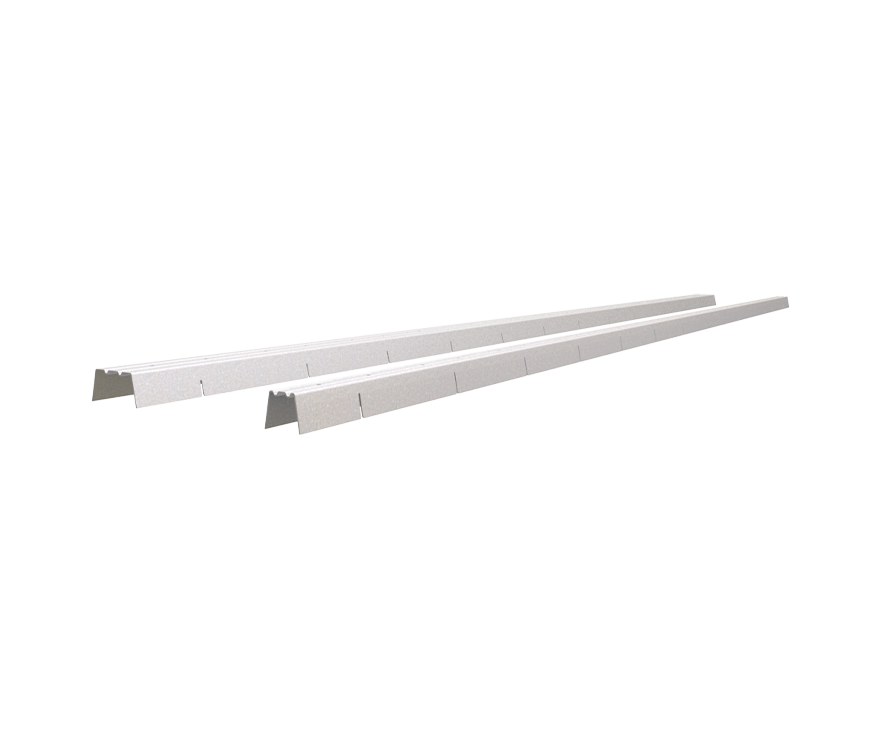

The Steel Network (BB150) BridgeBar® - BridgeBar Bridging Channel - Replaces CRC 52" x 4" o.c. x 1-1/2" x 28mils (22ga) (box of 50)

Product Description

The BridgeBar® is an innovative solution designed to replace traditional cold-rolled channel (CRC) for wall bridging, offering superior strength and ease of installation. Its unique design features grooves every 4 inches, which trap the stud web and allow for flexibility in spacing for any type of wall layout. The grooves adjust to accommodate various stud thicknesses, ensuring the stud web is securely locked in place for maximum structural integrity. BridgeBar’s integrated stiffeners resist compressive loads through the plane of the wall, making it a highly efficient option for maintaining wall stability. Its standard U-channel shape fits easily through ¾” and 1½” stud punchouts, streamlining the installation process and improving overall construction efficiency.

Product Information

• Sold as 50 per box
• Dimensions: 52" x 4" o.c. x 1-1/2" x 28mils (22ga)
• Replaces traditional cold-rolled channel (CRC) for stronger, more efficient wall bridging.
• Fast and easy installation
• Notches every 4″ accommodate 8″, 12″, 16″, and 24″ centers
• No need for clamping or welding
• Load-rated assembly for enhanced strength
• 52-inch length allows for a 4″ lap at joints, providing continuous wall support
• Guide holes for precise placement when used with BridgeClip®

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
