ClarkDietrich TDSB 16" O.C. TRADEREADY® STRUCTURAL BLOCKING 16" x 2-1/2" x 43mils (18ga) (bundle of 100)

Product Description

TradeReady® structural blocking is the third component of the TradeReady® steel floor system. Pre-cut to fit snugly between the undersides of floor joists, it effectively prevents joist rotation. This blocking offers a quick and efficient alternative to cross bracing, X-bracing, or strapping. Designed for economic efficiency, TradeReady® structural blocking includes pre-punched holes for rapid attachment. A continuous row of blocking should be installed every 8' on center maximum and staggered for easier attachment. Caution: to prevent joist rolling, make sure the structural blocking is tied into the structure or otherwise braced against lateral movement. Note: Structural blocking is not necessary if sheathing is applied to both the top and bottom of the joists. Installation: A continuous row of TradeReady structural blocking should be installed every 8' o.c. maximum and staggered for easier attachment. The blocking is secured to each joist flange using two #10 screws at each end.

Product Information

• Sold as 100 per bundle

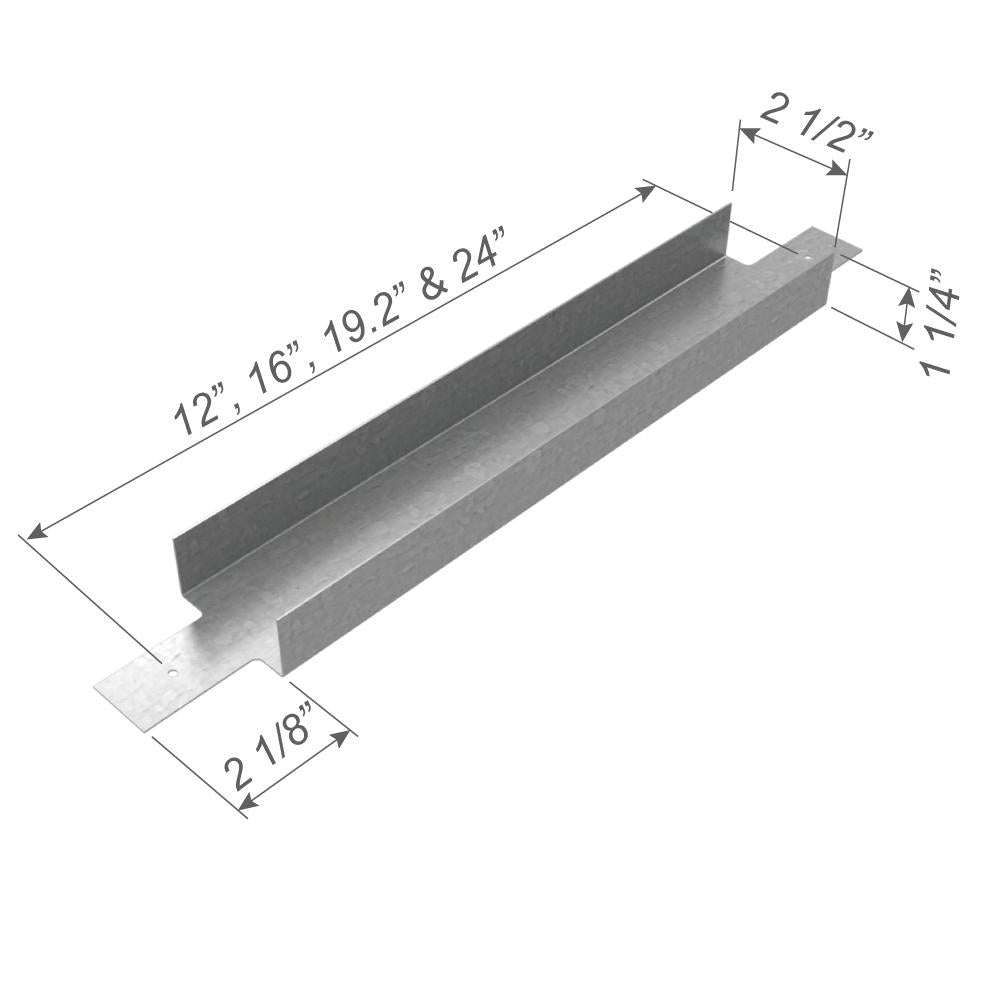

• Dimensions: 16" x 2-1/2" x 43mils (18ga)
• Economical alternative to strapping, x-bracing or tension bracing.
• Pre-cut to fit 12", 16", 19.2" or 24" spacing.
• Pre-punched holes for quick attachment.
• Available in 18 gauge, CP60.
