ClarkDietrich SPBG SPAZZER® BAR GUARD™ 3-1/4" x 1-5/8" (box of 100)

ClarkDietrich SPBG SPAZZER® BAR GUARD™ 3-1/4" x 1-5/8" (box of 100)

Regular price $71.43 USD
Regular price Sale price $71.43 USD
Sale Sold out

Product Description

The Spazzer Bar Guard™ retainer clip is used to secure the TradeReady Spazzer 5400 bar when used in load-bearing applications. The ClarkDietrich TradeReady® Spazzer® 5400 spacer bar is a pre-notched, galvanized steel spacer and bridging bar designed to help swiftly and efficiently construct exterior curtain wall framing, loadbearing walls, and high interior partitions made up of structural studs. Installation (Load-Bearing Wall): 1- Insert the TradeReady Spazzer 5400 bar through the stud knockouts and rotate it 90° to engage each side of the knockout securely. 2- For load-bearing studs, use the Spazzer 5400 bar guard bar retainer clip along with screws to firmly secure the bar in place. 3- Install the TradeReady Spazzer 5400 bar at a maximum 4' o.c. vertically or per specification. Do not use in studs over 6" wide. Installation (Non-Load-Bearing Wall): 1- Insert the TradeReady Spazzer 5400 bar through the stud knockouts and rotate it 90° to engage each side of the knockout securely. 2- For 20 gauge studs, screws are required in addition to the Spazzer 5400 bar guard bar retainer clip to firmly secure the bar in place. 3- Install the TradeReady Spazzer 5400 bar at a maximum 5' o.c. vertically or per specification. Do not use in studs over 6" wide.

Product Information

  • Sold as 100 per box

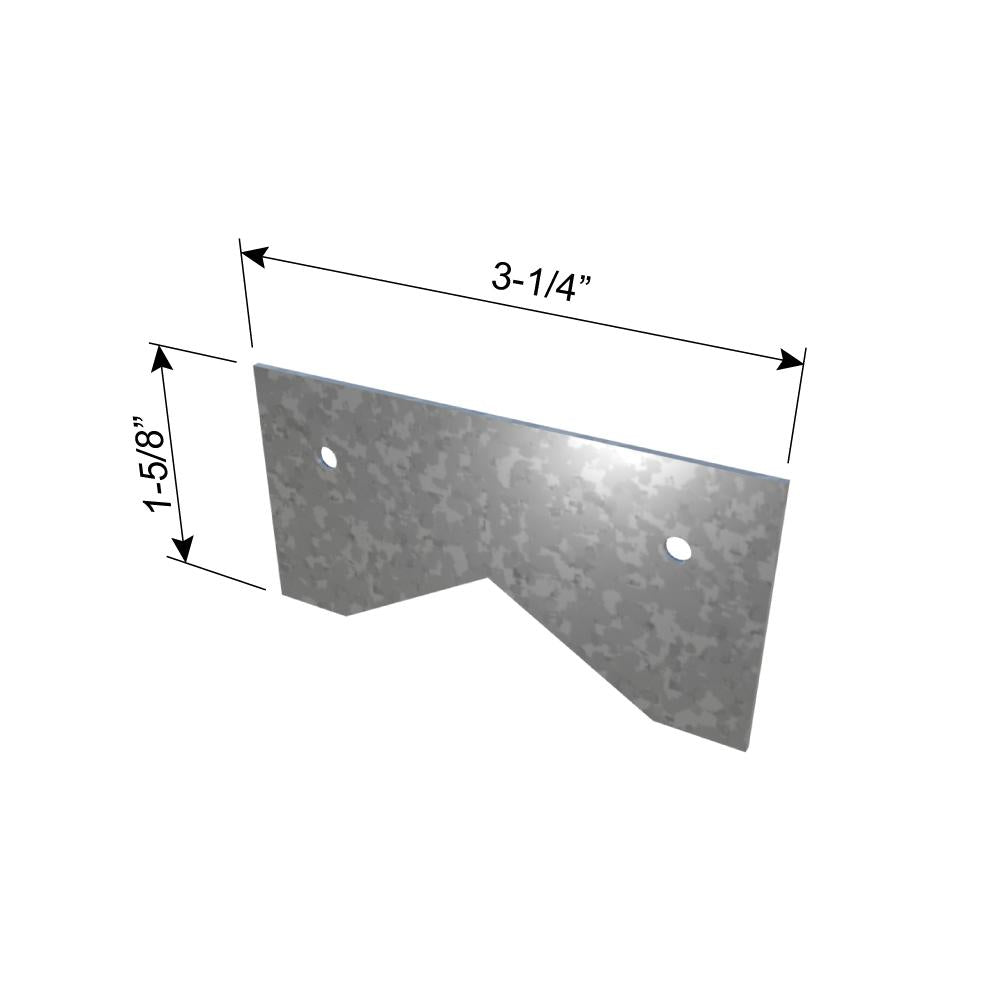

  • Dimensions: 3-1/4" x 1-5/8"
  • For use in load-bearing applications (screw attachment to load bearing studs required).
  • Use in combination with Spazzer 5400 bar.
  • See Spazzer Grommet for alternative securing method.
  • Coating: CP60 per ASTM C9555.
