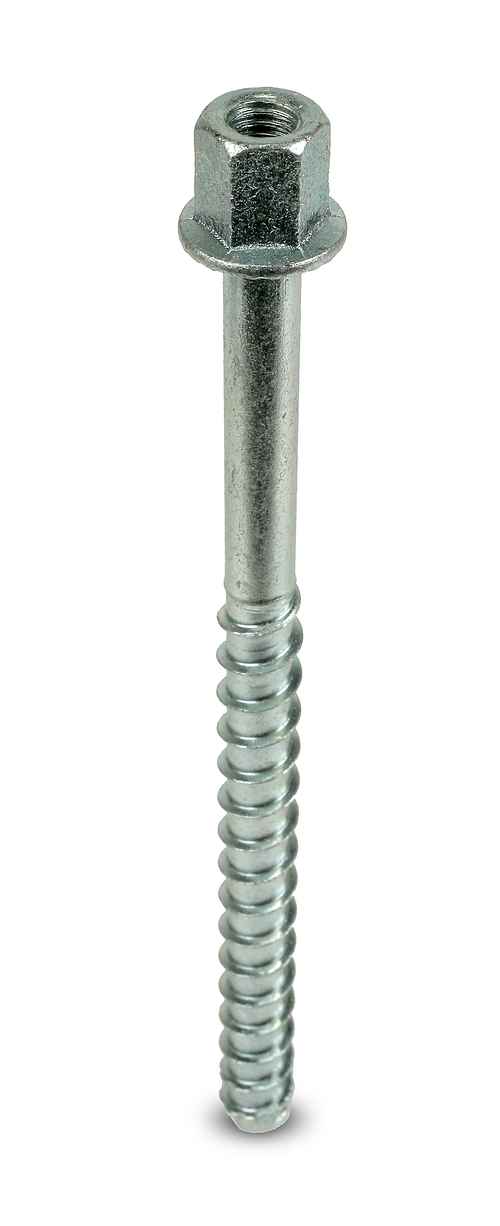

Simpson TITEN HD RC 3/8 X 6 3/4 Dims 6-3/4" x 3/8" (carton of 25)

Product Description

The Titen HD Rod Coupler is intended for use in conjunction with a rod tiedown system (single or multistory). This series of anchors is a fast and straightforward way to attach threaded rod to a concrete stem wall or thickened slab footing. In contrast with adhesive anchors, this anchor does not require any specialty tools, curing time, or secondary processes. Zinc plated finish. Installation: Drill a hole in the base concrete material, to a depth at least 1/2" past the required embedment. Use the same size drill bit as the nominal diameter of the anchor. Blow any dust debris out. Tighten the anchor with the appropriate size socket until the head sits flush against the base material.

Product Information

• Sold as 25 per carton
• Dimensions: 6-3/4" x 3/8"
• To be used with single or multistory rod tiedown system.
• Special heat treatment provides cutting tip hardness without compromising ductility.
• Use with standard drill bit: designed to install with ANSI tolerance drill bits.
