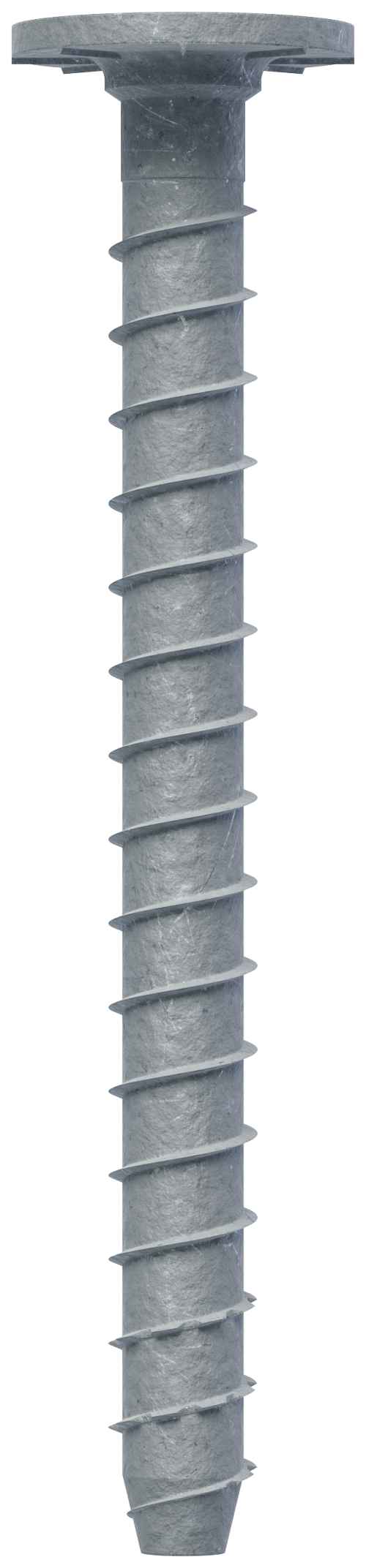

Simpson THD 1/2 x 8 Washer Head in MG- Pak 15 8" x 1/2" (carton of 2)

Product Description

The Titen HD screw anchor series is designed for use in both cracked and uncracked concrete, as well as uncracked masonry. This series of anchor provides outstanding performance with low installation torque. This model is provided in sizes appropriate for use in sill plate applications- 1/2" and 5/8" available. The low profile washer head allows modular wall and floor systems to be installed on top without notching the framing to accommodate the anchor. 6-lobe drive for ease of installation and reduced risk of stripping. Mechanically galvanized finish. Minimal washer-head design for use where a minimal head profile is necessary. Installation: Drill a hole in the base material concrete or masonry using a carbide drill bit that is the same diameter as the nominal diameter of the anchor to be installed. Drill the hole deep enough past embedment depth to allow thread tapping dust to settle inside hole. See manufacturer published overdrill depth table if needed. Blow dust clean. Insert anchor through fixture and into hole. Tighten anchor until the hex-washer head makes contact with the fixture.

Product Information

• Sold as 2 per carton
• Dimensions: 8" x 1/2"
• Mechanically galvanized finish.
• Minimal washer-head design for low profile installation in sill plate applications.
• 6 lobe drive reduces risk of stripping.
• Qualified for static, wind, and seismic loading conditions.
• Thread design undercuts for efficient load transfer to base material.
• Special heat treatment provides cutting tip hardness without compromising ductility.
• Use with standard drill bit: designed to install with ANSI tolerance drill bits.
• Hex-washer head does not require a separate washer unless required by code in some applications.
