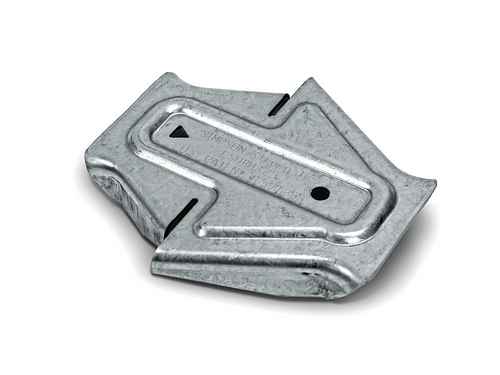

Simpson LIGHT DUTY BRIDGE CLIP 150 RETAIL PACK 20ga (33mils)

Product Description

The Simpson Strong-Tie LSUBH3.25-R150 Bridging Connectors/Clips are designed for light-duty bridging connections in cold-formed steel (CFS) framing applications. These clips allow standard 1-5/8" studs to be sistered directly against adjacent studs. Crafted from durable steel and coated for corrosion resistance, this clip offers reliable and efficient support for bridging members, providing stability and alignment. The clip's innovative design simplifies installation while ensuring compliance with building standards. See SUBH bridge clips for standard duty version appropriate for higher load demands. LSUBH3.25-R150 are manufactured from 20 gauge (33 mil) G90 galvanized steel. Installation: The LSUBH3.25-R150 Bridge Clip can be easily installed by twisting into place in the stud web knockout, securing the clip onto cold-formed steel framing members. Use the recommended fasteners to secure bridging and follow the designated hole placements to ensure structural stability and proper alignment. Many installation applications only require a single screw fastener, saving both time and hardware cost. See manufacturer documentation for detailed installation, spacing, and loading information.

Product Information

• Sold per piece
• Dimensions: 20ga (33mils)
• Optimized for Cold-Formed Steel (CFS): Perfect for use in light-duty CFS framing applications.
• G90 Corrosion-Resistant Coating: Enhances durability and long-term performance.
• Easy Installation: Simplified design speeds up the bridging connection process and in many cases reduces hardware use.
• SUBH and LSUBH accommodate single studs 33 mil (20ga) to 54 mil (16ga).

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
