Simpson (H1AZ) HURRICANE TIE ZMAX 5-9/32" x 5-9/32" x 13/16" 18ga (43mils) (carton of 100)

Product Description

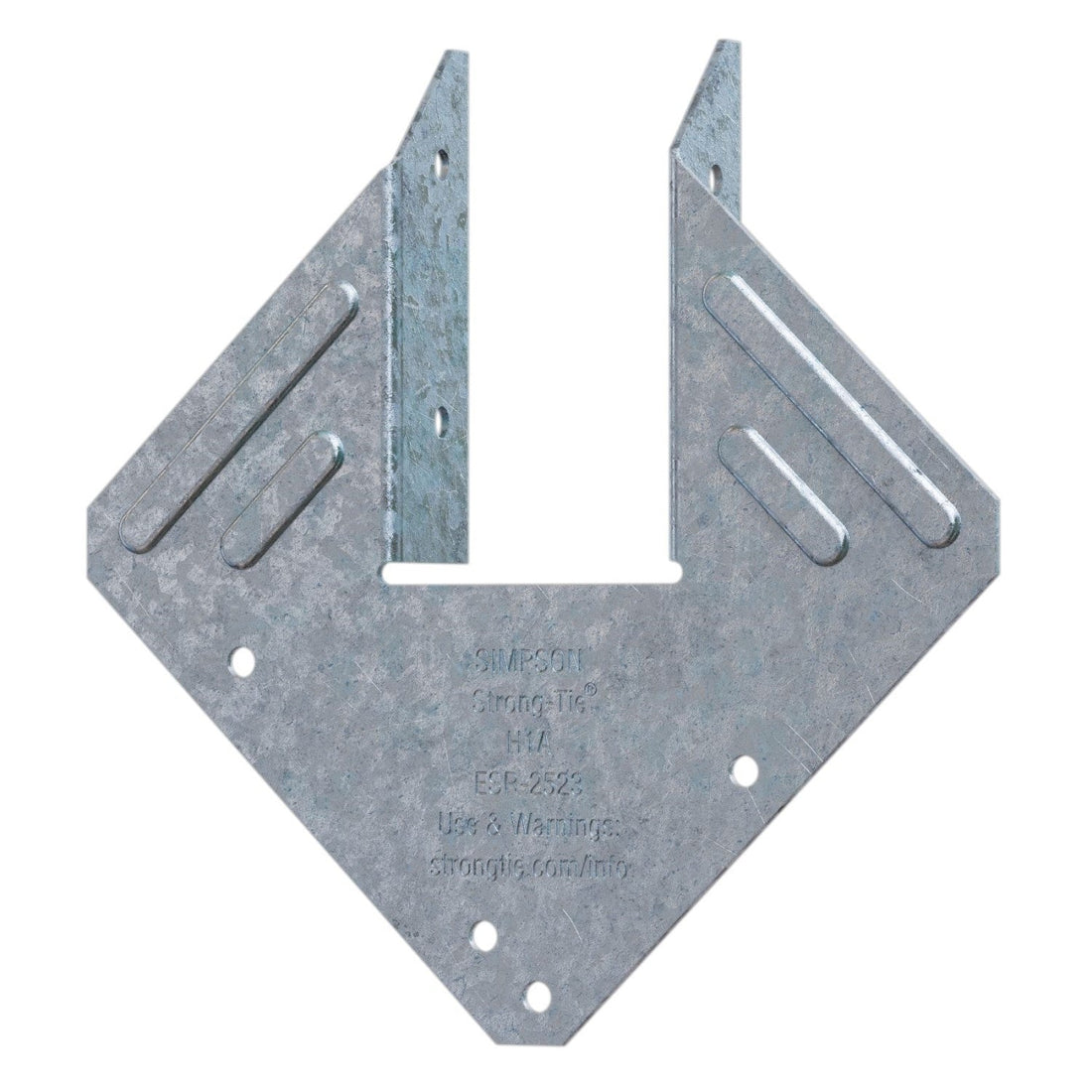

The Simpson Strong-Tie H1AZ Hurricane Tie is designed for securing trusses or rafters to wall plates, enhancing resistance to wind and seismic forces. Made from 18-gauge galvanized steel with a ZMAX coating for corrosion resistance, this single tie connects to both sides of nominal 2x lumber for higher lateral load resistance. It offers faster installation compared to single-sided ties and can be installed with flanges facing either in or out. Installation: For optimal performance, use all specified fasteners. Install on the outside or inside of the wall. Avoid fastening through truss plates from behind to prevent performance issues.

Product Information

• Sold as 100 per carton
• Dimensions: 5-9/32" x 5-9/32" x 13/16" 18ga (43mils)
• Simpson Strong-Tie H1AZ Hurricane Tie secures trusses or rafters to wall plates.
• Enhances resistance to wind and seismic forces.
• Made from 18-gauge ZMAX coated steel for durability and corrosion resistance.
• Single tie connects to both sides of nominal 2x lumber for higher lateral load resistance.
• Faster installation compared to single-sided ties.
• Can be installed with flanges facing either in or out.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
