Simpson (H11Z) HURRICANE TIE ZMAX 5-7/8" x 7-1/8" x 1-5/16" 18ga (43mils) (carton of 50)

Product Description

The Simpson Strong-Tie H11Z Hurricane Tie is designed to hold a rafter or truss on both sides for high lateral load resistance. The H11Z is specifically designed for 3x nominal lumber. The U-shaped design provides faster installation than using two single-sided ties. This tie primarily provides a connection between the truss or rafter and the wall of the structure that helps resist wind and seismic forces, but can also be used for a variety of connections where one member crosses another. The H11Z is made of 18 gauge steel and features a ZMAX® galvanized finish. Install the H11Z using all specified fasteners. Hurricane ties do not replace solid blocking. Avoid fastening through truss plates from behind to prevent performance issues.

Product Information

• Sold as 50 per carton

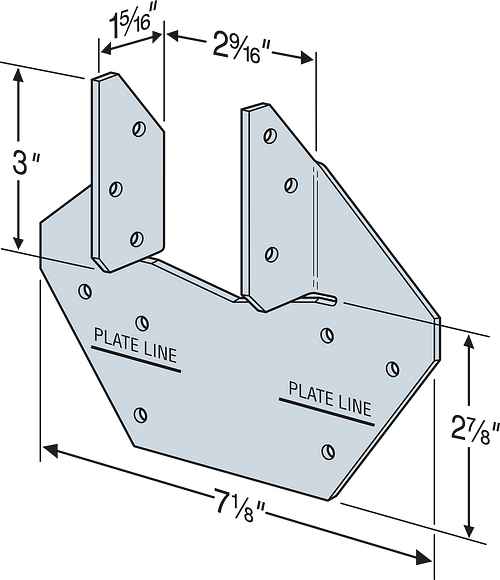

• Dimensions: 5-7/8" x 7-1/8" x 1-5/16" 18ga (43mils)
• Specifically made for use with 3x nominal lumber.
• Constructed from 18-gauge steel with a ZMAX® galvanized finish for corrosion resistance.
• Designed to secure rafters or trusses on both sides for high lateral load resistance.
• U-shaped design allows for faster installation compared to two single-sided ties.
• Provides a strong connection between truss/rafter and the wall, helping resist wind and seismic forces.
• Versatile for use in various connections where one member crosses another.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
