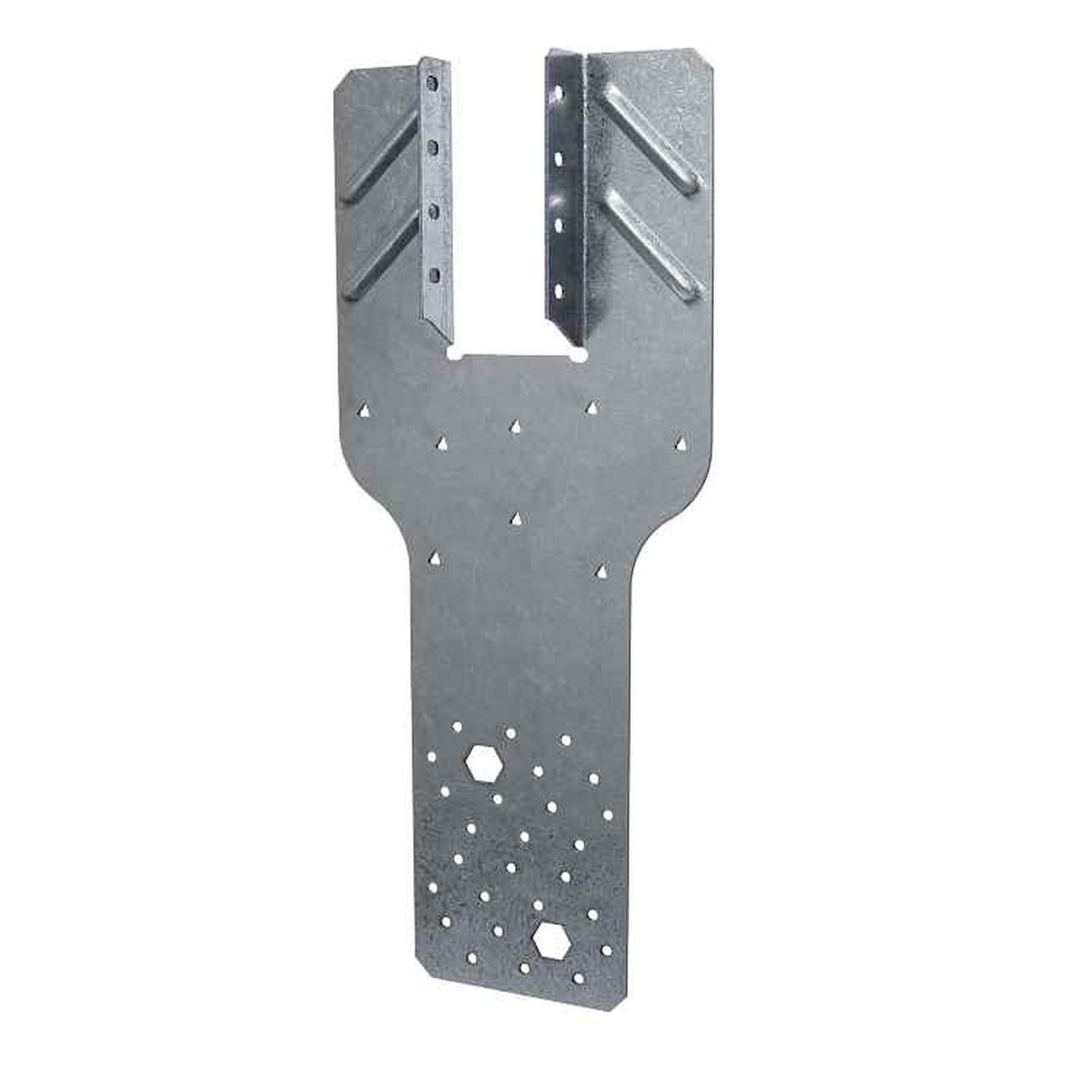

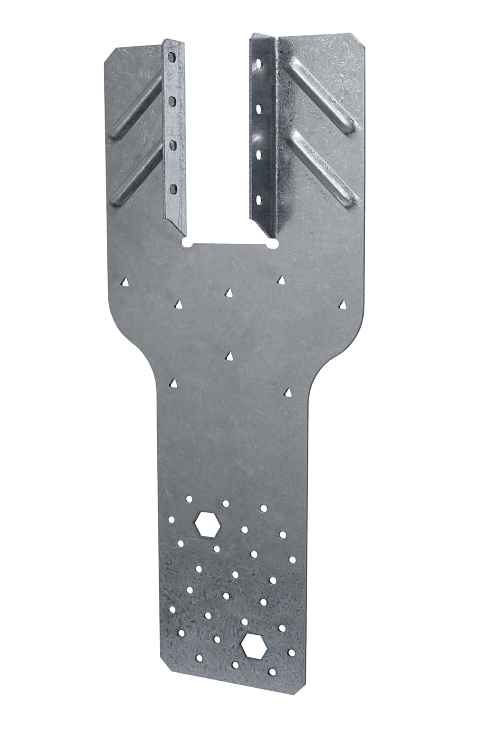

Simpson (H10S) HURRICANE TIE - STUD 11-5/8" x 5" 18ga (43mils) (carton of 25)

Product Description

The Simpson Strong-Tie H10S is designed to hold the rafter or truss on both sides for higher uplift applications with wood, concrete or concrete masonry walls. The longer bottom strap extends down the wall for higher capacity. Easy installation with Simpson Strong-Tie Titen HD screw anchors provides higher uplift and lateral capacity. These double-sided hurricane ties provide faster installation than using two single-sided straps. The embossments add stiffness in crucial areas for improved performance. Made from 18-gauge galvanized steel with G90 coating. Installation: The H10S is installed using specified fasteners, such as Titen HD screw anchors. Attach such that screw anchors are not exposed to the exterior elements. Attach to grouted concrete blocks with a minimum horizontal #5 rebar in the course. Fasteners should be used per manufacturer instructions. Hurricane ties do not replace solid blocking. Avoid fastening through truss plates from behind to prevent performance issues.

Product Information

• Sold as 25 per carton
• Dimensions: 11-5/8" x 5" 18ga (43mils)
• Made from durable 18-gauge galvanized steel with G90 coating.
• Designed to secure rafters or trusses on both sides for higher uplift applications.
• Suitable for use with wood, concrete, or concrete masonry walls.
• Extended bottom strap for increased capacity along the wall.
• Easy installation with Simpson Strong-Tie Titen HD screw anchors for higher uplift and lateral capacity.
• Double-sided design allows faster installation than two single-sided straps.
• Embossments add stiffness for improved performance.
