Simpson HURRICANE TIE 19-3/16" x 2-1/4" 16ga (54mils) (carton of 50)

Product Description

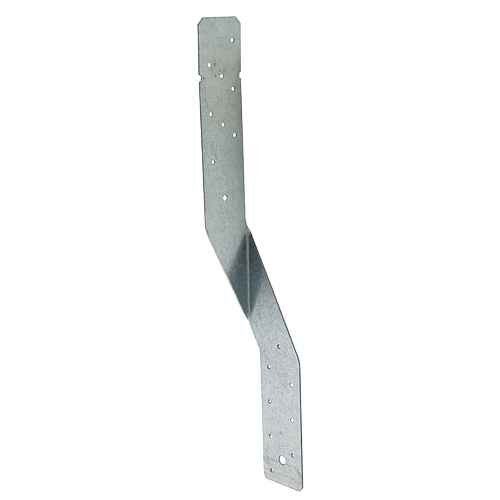

The Simpson Strong-Tie H6 single-sided hurricane tie is designed to resist moderate to high uplift loads at both stud-to-top track and rim-joist-to-stud connections. The length of the tie makes it ideal for applications where spanning a larger distance between members is necessary. The H6 is also well suited for hybrid projects with connection of wood trusses or joists to cold formed steel (CFS) walls. This tie is made of 16 ga. steel with a G90 coating for corrosion resistance. Shipped in equal quantities of left and right ties. Installation: Use all specified fasteners to ensure full load capacity and optimal performance. Note hurricane ties do not replace solid blocking. Avoid fastening through truss plates from behind to maintain truss performance.

Product Information

• Sold as 50 per carton
• Dimensions: 19-3/16" x 2-1/4" 16ga (54mils)
• Designed for moderate to high uplift load resistance at stud-to-top track and rim-joist-to-stud connections.
• Length of the tie is ideal for spanning larger distances between members.
• Well-suited for hybrid projects, connecting wood trusses or joists to cold-formed steel (CFS) walls.
• Shipped in equal quantities of left and right versions.
• Constructed from 16-gauge steel for durability.
• G90 coating provides corrosion resistance.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
