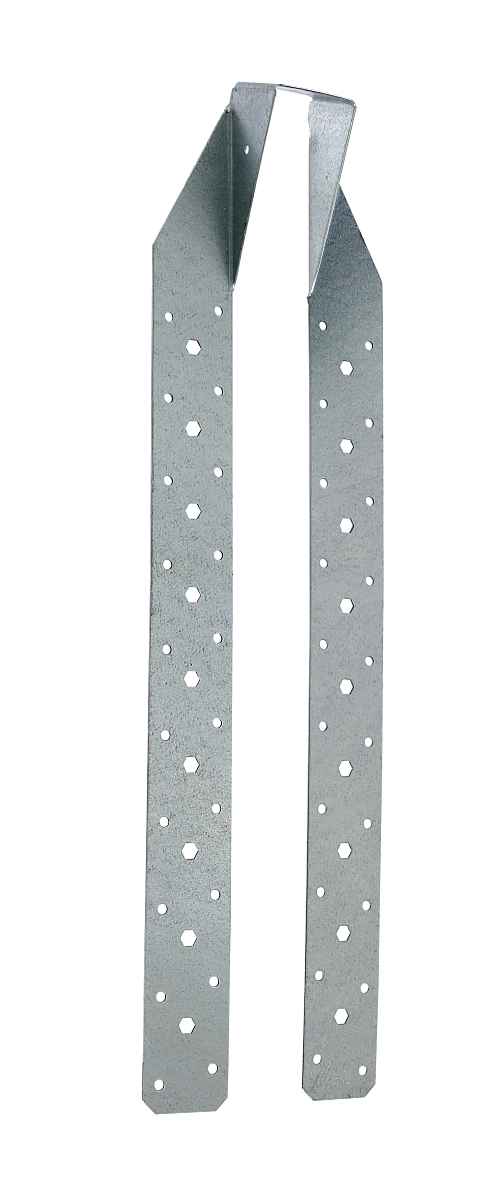

Simpson (H16) HURRICANE TIE 18-3/4" x 1-5/8" x 18ga (43mils) (carton of 25)

Product Description

The Simpson Strong-Tie H16 Hurricane Tie is designed for high-capacity wind resistance. This tie securely connects trusses and rafters to wall plates in wood-framed structures. Its presloped seat, angled at 5:12, allows for a tight fit and minimizes deflection during wind events. The H16 is versatile for a range of truss heel heights from 4" up to 13-1/2", and the tie is constructed from 18-gauge galvanized steel for enhanced corrosion resistance. This connector offers strong protection against uplift and lateral forces, ensuring long-lasting performance in regions prone to hurricanes, high winds, and seismic activity. The H16 model features a 1-5/8" wide seat. See H16-2 for a 3-1/4" wide seat. Installation: To install the H16, use all manufacturer specified fasteners to achieve load table values. The presloped design facilitates an accurate fit. This hurricane tie is compatible with trusses or rafters at a pitch from 3/12 to 7/12. Designed for a minimum heel height of 4". Note that this connector does not replace solid blocking in the framing structure.

Product Information

• Sold as 25 per carton
• Dimensions: 18-3/4" x 1-5/8" x 18ga (43mils)
• Simpson Strong-Tie H16 Hurricane Tie designed for high-capacity wind resistance.
• Securely connects trusses and rafters to wall plates in wood-framed structures.
• Features a 5:12 presloped seat for a tight fit and minimal deflection.
• Made from 18-gauge G90 galvanized steel for corrosion resistance.
• Offers protection against uplift and lateral forces during hurricanes, high winds, and seismic activity.
• H16 model has a 1-5/8" wide seat; H16-2 has a 3-1/4" wide seat.
