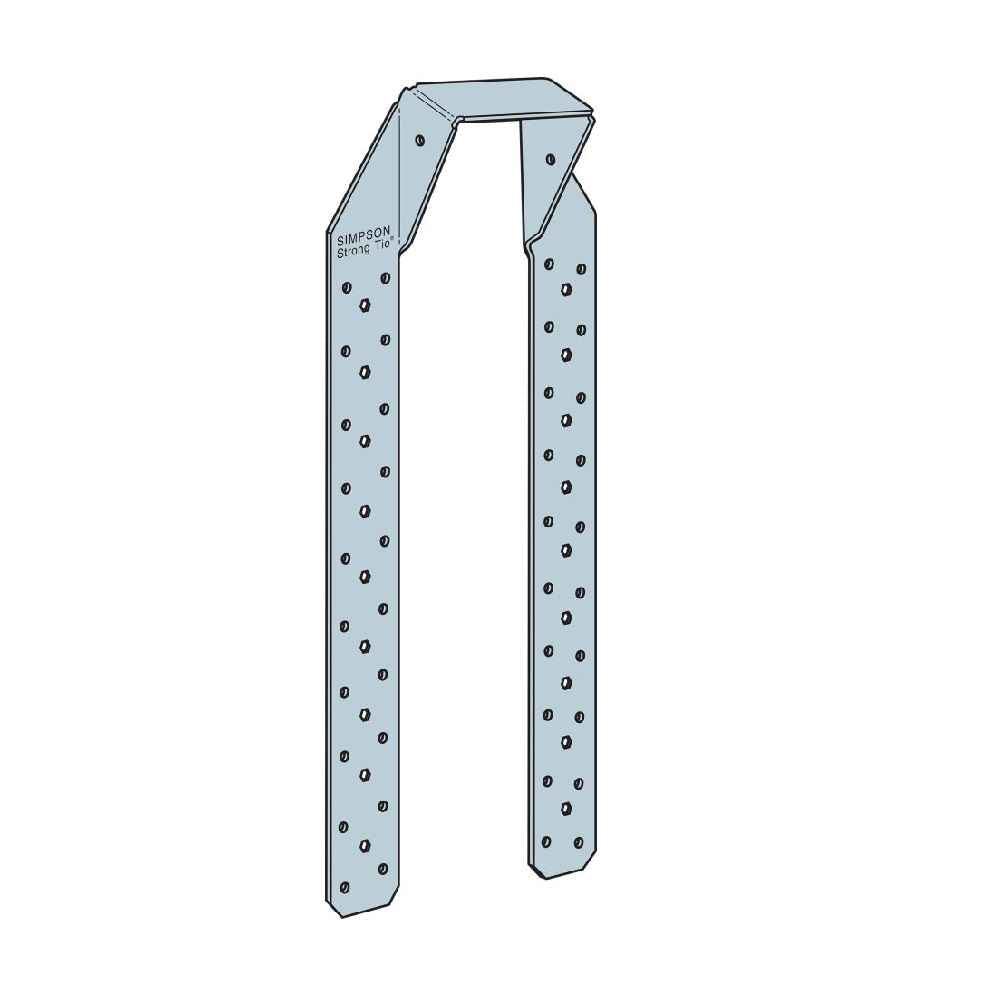

Simpson HURRICANE TIE 11-11/16" x 3-1/4" x 18ga (43mils) (carton of 25)

Product Description

H16-2S hurricane tie features a 11-11/16" length, and is ideal for wood truss to masonry walls with top plate connections in retrofit application. The Simpson Strong-Tie H16 series Hurricane Tie is designed for high-capacity wind resistance. This tie securely connects trusses and rafters to wall systems. Its presloped seat, angled at 5:12, allows for a tight fit and minimizes deflection during wind events. The H16 series is constructed from 18-gauge galvanized steel for enhanced corrosion resistance. This connector offers strong protection against uplift and lateral forces, ensuring long-lasting performance in regions prone to hurricanes and seismic activity. The H16-2S features a 3-1/4"" wide seat. See the H16S model for a 1-5/8" wide seat. Installation: To install the H16 series, use all specified fasteners for secure attachment (0d x 1-1/2-in nails, 1/4 x 2-1/4-in Titen screws and 1/4 x 1-3/4-in Titen screws). The presloped design facilitates an accurate fit. This hurricane tie is compatible with trusses or rafters at a pitch from 3/12 to 7/12. Designed for a minimum heel height of 4".

Product Information

• Sold as 25 per carton
• Dimensions: 11-11/16" x 3-1/4" x 18ga (43mils)
• Simpson Strong-Tie H162S Hurricane Tie designed for high-capacity wind resistance.
• Securely connects trusses and rafters to concrete walls with top plate.
• Features a 5:12 presloped seat for a tight fit and minimal deflection.
• Made from 18-gauge G90 galvanized steel for corrosion resistance.
• Offers protection against uplift and lateral forces during hurricanes, high winds, and seismic activity.
• H16S model has a 1-5/8" wide seat; H16-2S has a 3-1/4" wide seat.
