Simpson Strong-Tie

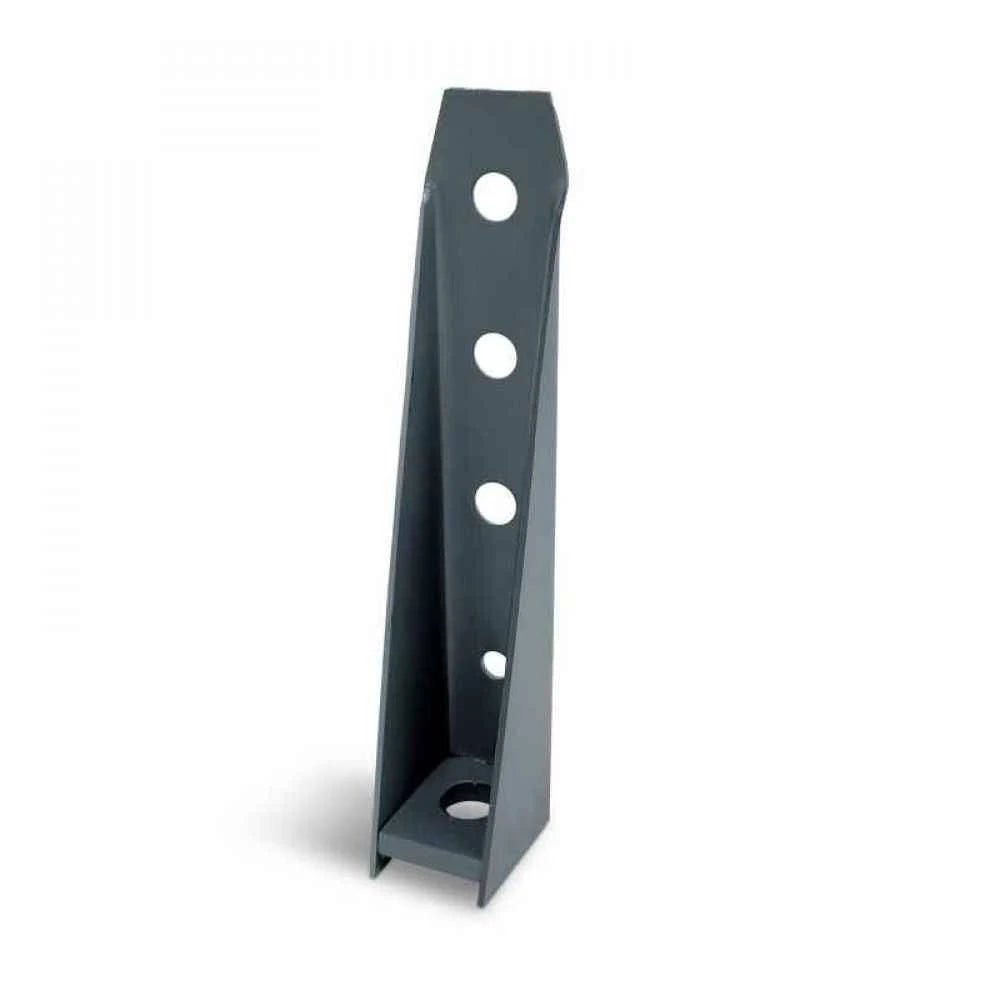

Simpson (S/HD10B) CFS HOLDOWN BOLTED 13-1/2" x 2-5/16" x 10ga 118mils)

Simpson (S/HD10B) CFS HOLDOWN BOLTED 13-1/2" x 2-5/16" x 10ga 118mils)

Regular price $60.79 USD
Regular price Sale price $60.79 USD
Sale Sold out

Product Description

The Simpson Strong-Tie S/HDB holdown series is engineered for high-load shearwalls, braced-wall panels, and lateral applications. S/HDB model is designed for installation with bolted attachment to post/column member, see S/HDS for screw attachment version.Ideal for bolt-on connections in cold-formed steel construction where the stud manufacturer can pre-punch bolt holes. The holdowns feature a unique seat design that minimizes deflection under heavy loads. These holdowns can be installed directly on the bottom track or raised above it. These holdowns are suitable for back-to-back stud applications where eccentricity is a concern. Simpson Strong-Tie gray-painted finish. S/HD10B is made of 10 gauge (118 mil) material and pre-punched with bolt holes. Installation: For installation, use all specified fasteners. Standard washers are needed for the stud bolt nuts in the S/HDB model, though anchor bolt washers are not required. Boundary members, such as back-to-back studs, must be designed by the project engineer. Can be welded per designer's specification.

Product Information

  • Sold per piece
  • Dimensions: 13-1/2" x 2-5/16" x 10ga 118mils)
  • Engineered for high-load shearwalls, braced-wall panels, and lateral applications.
  • Ideal for bolt-on connections in cold-formed steel studs with pre-punched bolt holes.
  • Features a unique seat design that minimizes deflection under heavy loads.
  • Finished with durable Simpson Strong-Tie gray paint.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
