Simpson (RCA-C223/97-R90) CFS Concrete Clip 2x2x3 12ga 90 pak 3" x 2" x 2" x 12ga (97mils)

Product Description

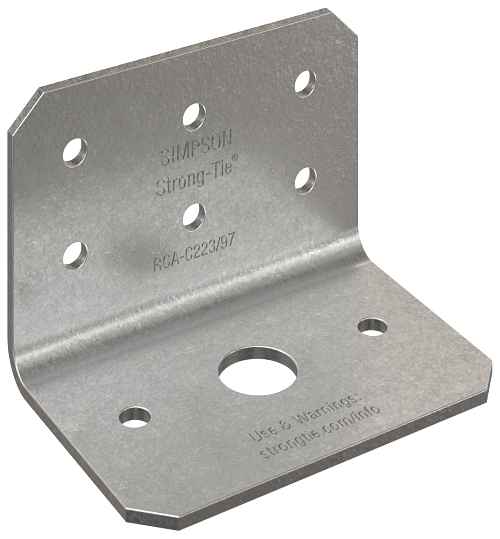

The Simpson Strong-Tie RCA-C223/97-R90 is a versatile rigid connector angle specifically designed to securely attach stud framing to concrete supports. Its pre-punched holes eliminate on-site drilling, saving time and labor. The connector allows multiple anchoring options, including 1/2"-diameter anchors or two 1/4"-diameter concrete screws, making it suitable for a variety of fastening options and load requirements. With 2" x 2" legs, it provides ample room for secure attachment, and its galvanized G90 finish and 12 ga. steel construction ensures durability in demanding conditions. It can be used as a heavy duty shear and tension connector or for light-duty moment connection. RCA-223/97-R90 is 3" long. 5" length also available. Installation: The RCA-C223/97-R90 is attached to concrete using the pre-punched holes with either (1) 1/2"-diameter anchor or (2) 1/4"-diameter anchors, or (2) 1/4" diameter concrete screws. It can be attached to concrete or masonry using 1/2" diameter Titen HD or 1/2" diameter Strong-Bolt 2, 1/4" diameter Titen HD, or 1/4" diameter Titen Turbo fasteners/anchors. Always use the specified fasteners to achieve manufacturer published load capacities and optimal performance. Prepunched holes for screws to stud framing.

Product Information

• Sold per piece
• Dimensions: 3" x 2" x 2" x 12ga (97mils)
• 3" length clip in 90 pack quantity.
• 2" x 2" legs for ample attachment space.
• Multiple pre-punched holes for flexibility in anchoring style.
• Supports both heavy-duty shear and tension, or light-duty moment connections depending on installation.
• Galvanized G90 finish and 12 ga. steel construction for durability
