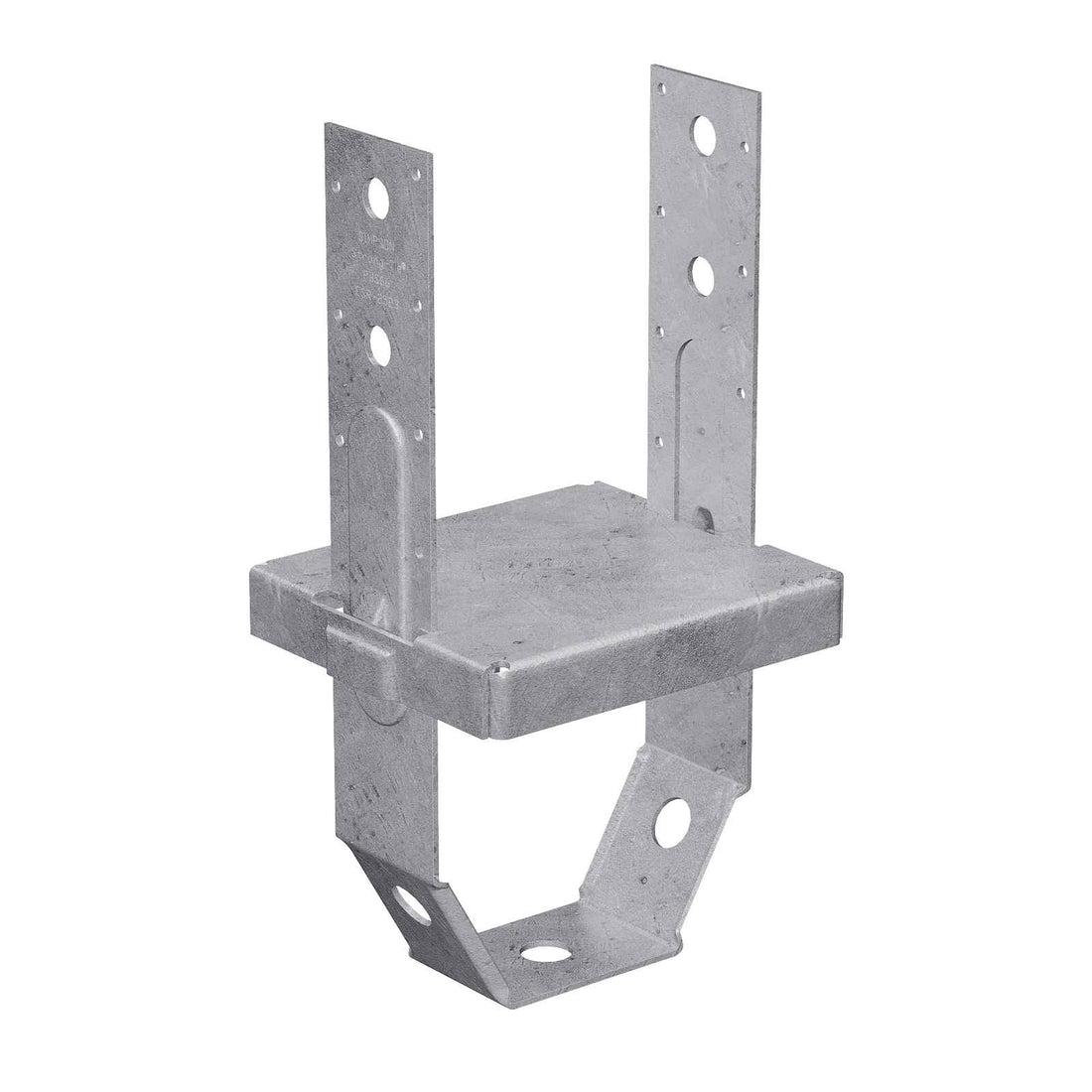

Simpson 4 X 6 POST BASE STAND OFF HDG 4" x 6" x 12ga (97mils) (carton of 5)

Product Description

The Simpson Strong-Tie PBS46HDG Post Base offers a reliable and corrosion-resistant solution for securing 4x6 posts to concrete surfaces. With its Hot Dipped Galvanized finish, this stand-off post base provides superior protection against moisture and rust, making it ideal for outdoor applications. The elevated design ensures posts are kept above ground for code compliance and to reduce the risk of water damage and decay. Note that post bases do not provide adequate resistance to prevent posts from rotating about the base. Not recommended for installations without top support (fences, unbraced carports, etc). Installation: Position the PBS46 post base where desired in concrete. Embeds in wet concrete for cast-in-place attachment. 2" minimum side cover required to achieve manufacturer published load values. Align the 4x6 wood post into the base and fasten using recommended fasteners, either nails or bolts.

Product Information

• Sold as 5 per carton
• Dimensions: 4" x 6" x 12ga (97mils)
• Hot Dipped Galvanized Steel: Ensures long-lasting rust protection.
• Stand-Off Design: Ensure code compliance and keep posts elevated to reduce moisture exposure.
• Versatile Application: Suitable for decks, patios, and other top-supported installations.
• Minimal rotational resistance: not recommended for non-top supported applications (fences, carports, etc).
