Simpson 16-5/8IN PREDEFLECTED CFS HOLDOWN 16-5/8" x 10ga (118mils) (carton of 4)

Product Description

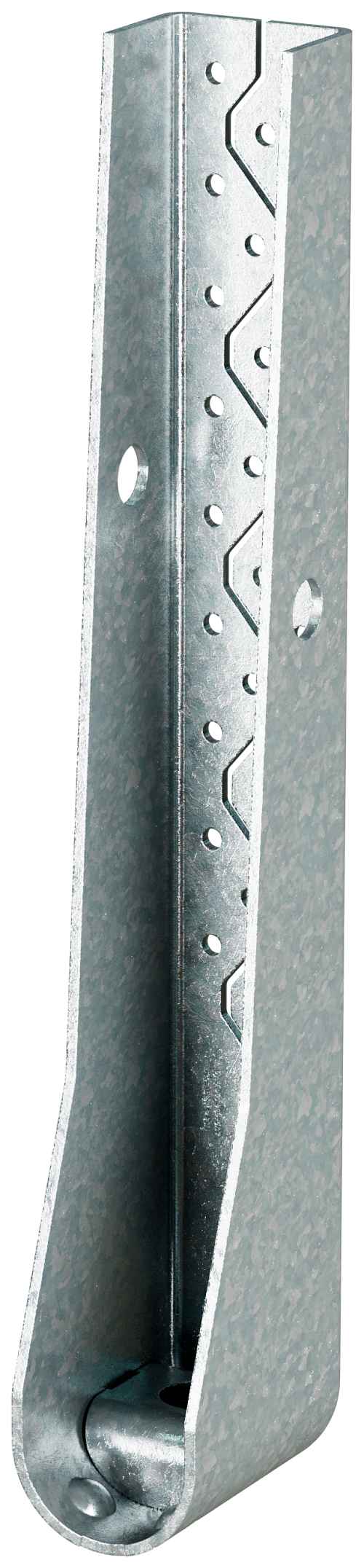

The Simpson Strong-Tie S/HDU holdown series provides high performance with simple installation. The holdowns feature predeflected geometry, resulting in low deflection under load. Designed to be installed using self-drilling tapping screws into the framing studs, these holdowns reduce installation time. This time efficiency results in labor cost savings. S/HDU holdowns are made from 10ga (118 mil) G90 coated steel. Installation: Use all specified fasteners. Fasten to studs with standard #14 self-drilling screws. Anchor bolt washer is not required. See SB, SSTB, and PAB anchor bolts for case-in-place anchoring options. See SET-3G and AT-XP epoxy products for retrofit anchoring options.

Product Information

• Sold as 4 per carton
• Dimensions: 16-5/8" x 10ga (118mils)
• High-performance holdown series with simple installation.
• Predeflected geometry ensures low deflection under load.
• Installed using common #14 self-drilling tapping screws.
• Time-efficient installation leads to labor cost savings.
• Constructed from 10-gauge (118 mil) G90 coated steel for durability.
