ClarkDietrich

ClarkDietrich SA6 SKEWABLE ANGLE 4-7/8" X 6-3/8" 6-3/8" x 4" x 43mils (18ga) (box of 100)

ClarkDietrich SA6 SKEWABLE ANGLE 4-7/8" X 6-3/8" 6-3/8" x 4" x 43mils (18ga) (box of 100)

Regular price $301.33 USD
Regular price Sale price $301.33 USD
Sale Sold out

Product Description

ClarkDietrich Skewable Angles provide versatile and sturdy connections for various framing applications, including joist-to-joist, joist-to-hip beam, or joist-to-other miscellaneous framing. These angles are specially designed for making off-angle connections, offering flexibility in construction projects. With the ability to be field bent from 0° to 135°, they are highly useful in truss fabrication, especially for hip truss roof configurations featuring 45 and 135-degree angles. Please note that these angles can only be bent once Installation: 1- Make sure to use designated fasteners for optimal performance. 2- When dealing with off-angle connections, make sure to field bend the Skewable Angle (ONE TIME ONLY) to the necessary angle such that it fits securely over the two adjoining framing members. 3- Once appropriately bent, firmly secure the Skewable Angle in place by utilizing #10 screws or as specified in the design requirements. The joist must be constrained against rotation when using a single Skewable Angle per connection.

Product Information

  • Sold as 100 per box

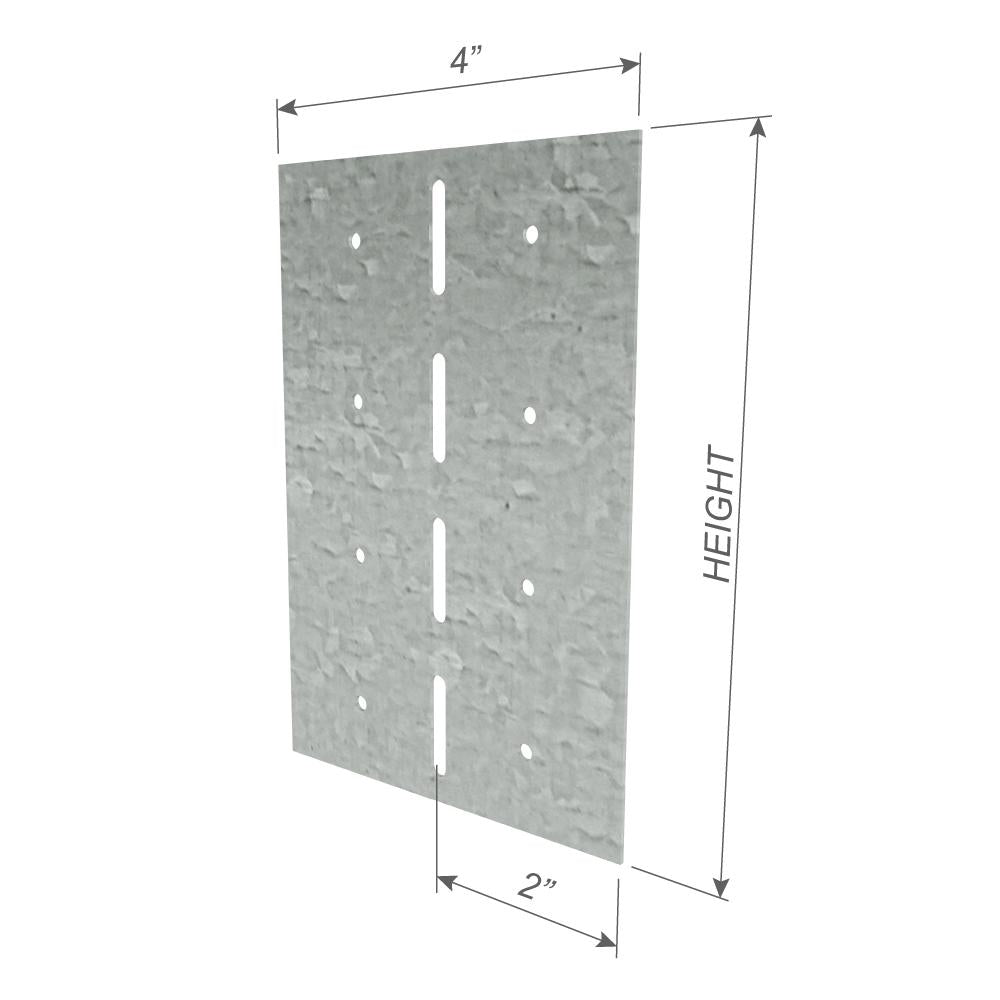

  • Dimensions: 6-3/8" x 4" x 43mils (18ga)
  • Ideal for off-angle connections.
  • Bend (ONE TIME ONLY) from 0° to 135° on the jobsite.
  • Useful for joist-to-joist connections, truss fabrication, etc.
  • G90 galvanized coating.

Product Use Cases

Alternative Products

  • Skewable Angle
  • Alternative Skewable Angles
  • Additional Resources

    Link to manufacturer website.

    Link to submittals.

    Link to collection.

    View full details
