ClarkDietrich S685 SUPPORT CLIP 14GA 5" x 1-1/2" x 1-1/2" x 68mils (14ga) (bucket of 200)

Product Description

ClarkDietrich EasyClip S-Series Support clips are used to secure U-Channel (cold-rolled channel) to framing members for lateral bridging and for miscellaneous rigid connections. This high-performance, multi-use utility clip is ideal for corner reinforcements, stair openings, and numerous support applications. Also commonly used for rigid connections in window and door framing, joist, bypass or other miscellaneous connections to secure one framing member to another, or to secure framing members to the structural frame. Available in a variety of lengths and gauges, EasyClip S-Series clips are prepunched for faster and more accurate fastener placement. Installation: EasyClip S-Series support clips are attached to the cold-formed steel (CFS) framing members using #10 minimum self-drilling screws driven through the clip holes into the steel framing. When not filling all holes, install fasteners symmetrically starting at the top and bottom edges and move toward the center of the clip. Clip can also be welded to the CFS framing. Connections to the building frame can be made with powder-actuated fasteners, drill-in concrete anchors or welding. When using the tabular values for a welded clip, provide a full weld to the structure, top to bottom, along the outside of the clip. A 3/4" minimum weld on the outside edge of the 1-1/2" leg is also required to control warping or to hold the clip in place before final welding.

Product Information

• Sold as 200 per bucket

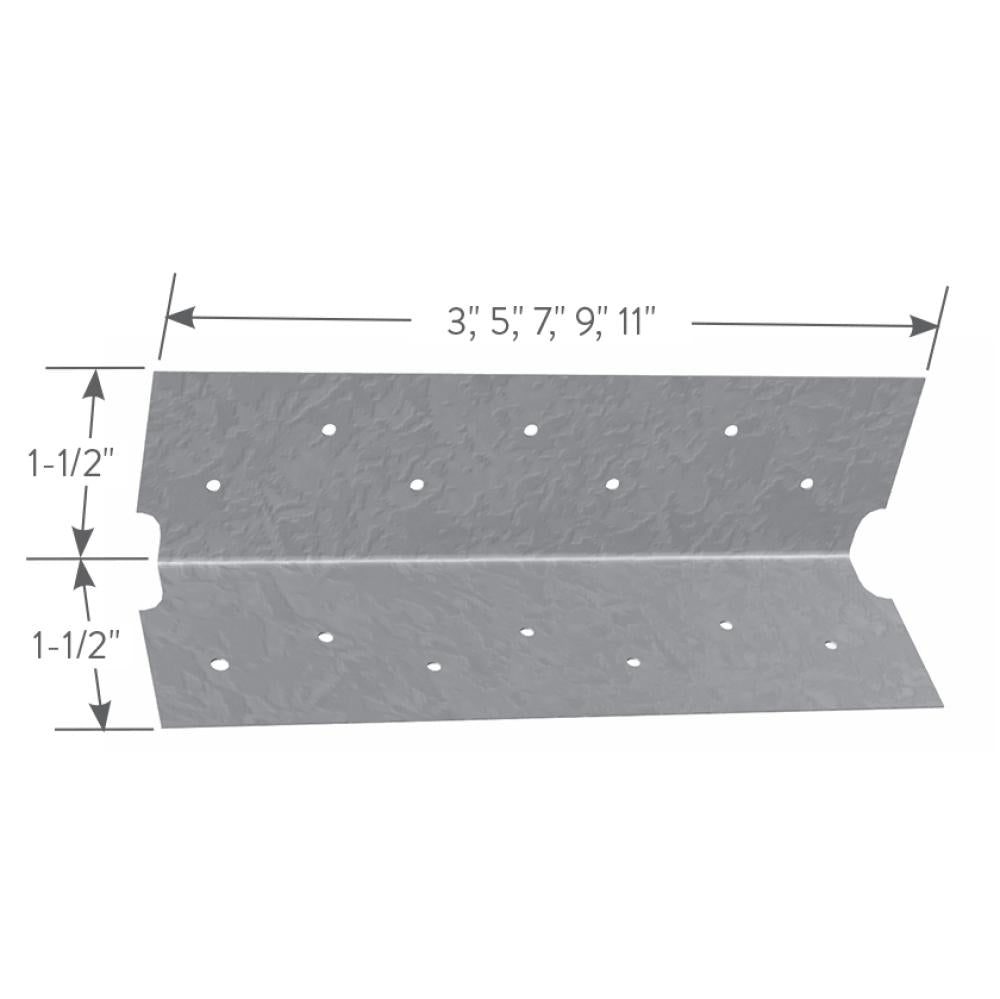

• Dimensions: 5" x 1-1/2" x 1-1/2" x 68mils (14ga)
• 1-1/2" x 1-1/2" legs.
• Lengths available in 3", 5", 7", 9" and 11".
• Available in 16, 14, and 12 gauge.
• G90 galvanized coating.
