ClarkDietrich RCSC3-54 CRIPPLE STUD CLIP 3.625 16GA 3-3/8" x 1-1/2" x 1-1/2" x 54mils (16ga) (bucket of 400)

Product Description

This Header Cripple Stud Clip is designed for use with the RedHeader Pro or HDS Framing System. Using this clip eliminates the header track material and is a more economical alternative. Installation: 1-Header Cripple Stud Clips are attached to the cold-formed steel (CFS) framing members using #10 minimum self-drilling screws driven through the clip holes into the steel framing. 2-It is the responsibility of the design engineer to detail the attachment of clips and verify their capacity meets the application. 3-Place the first two screws in each leg in the outermost screw holes. The next screws (if needed) are placed moving from the outermost holes toward the center, symmetrically.

Product Information

• Sold as 400 per bucket

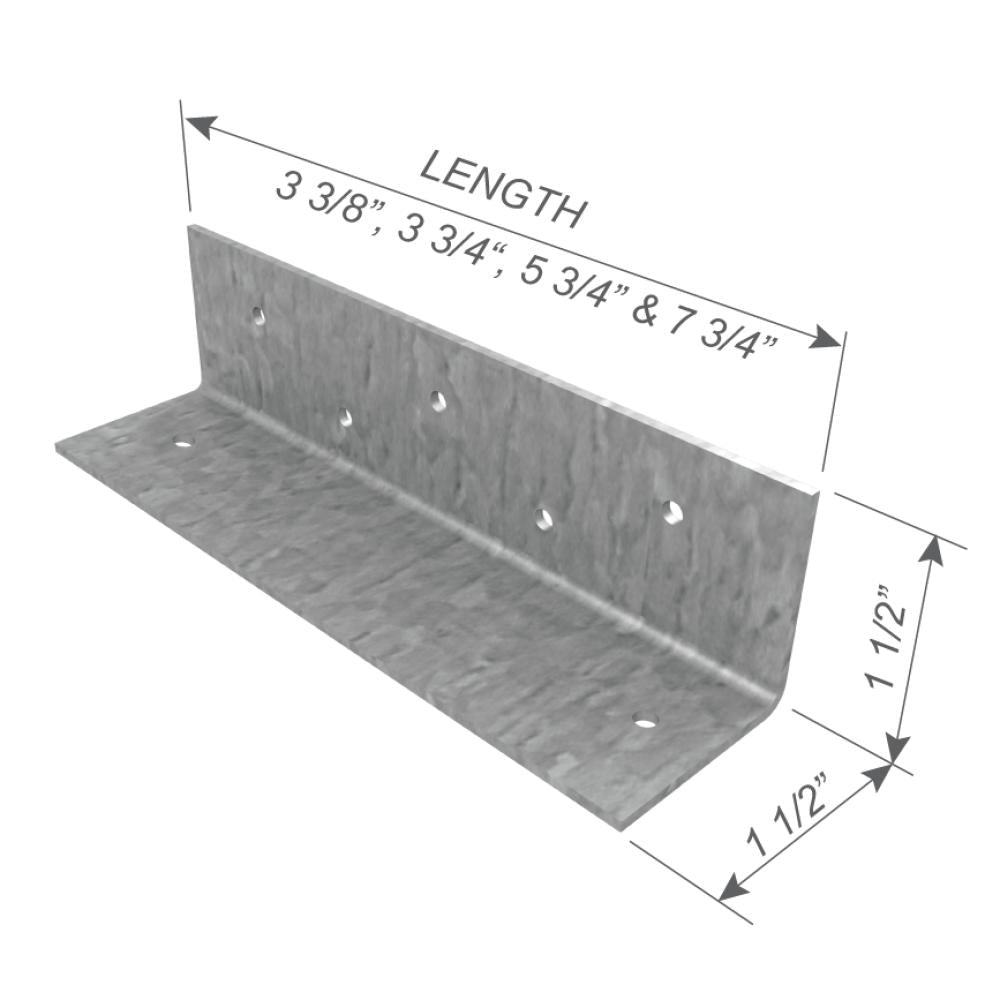

• Dimensions: 3-3/8" x 1-1/2" x 1-1/2" x 54mils (16ga)
• Eliminates the header track material and is a more economical alternative.
• Extra long return legs on RedHeader PRO and HDS allows for ease of attachment.
• Top of header is open, allowing for easy install of the insulation. No need to "pre-insulate" headers prior to installation.
