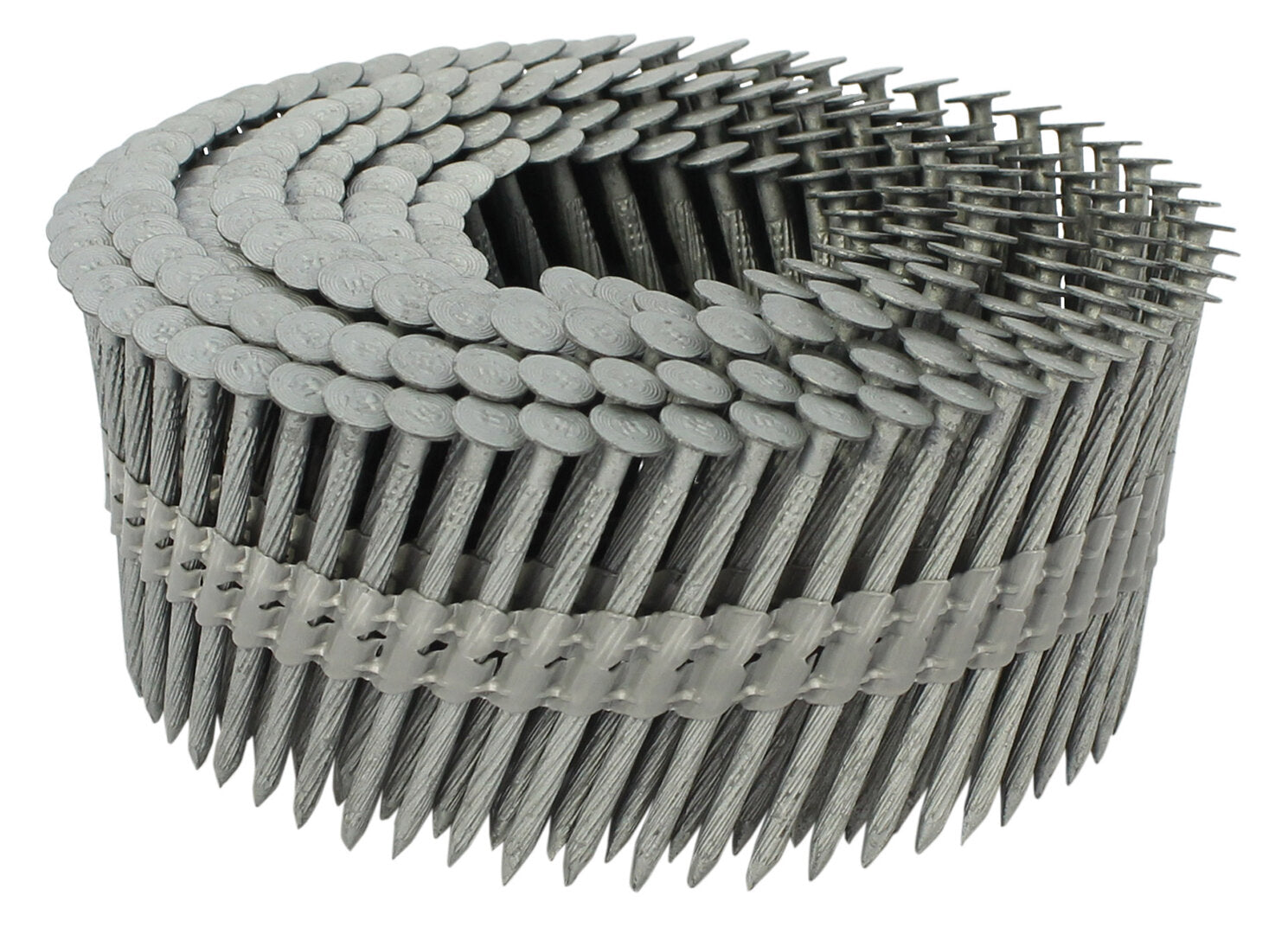

ET&F COIL PANELFAST® PINS (AGS-100-0200NA) Dims .100 x 2” Knurled Pin

Product Description

The AGS-100 Series PanelFast® Pins are engineered for high-strength attachment of sheathing and cladding materials to cold-formed steel framing 14 gauge (68mil) and lighter. Designed for use with the PanelFast System Model 510A, these .100" diameter pins feature a nominal 5/16" head, providing excellent pull-over resistance when fastening plywood, OSB, fiber cement, or gypsum sheathing.

Each pin includes a ballistic point for easy penetration and a knurled shank to maximize holding power in steel substrates. Finished with Aericote® 1000, these pins provide exceptional corrosion resistance, withstanding up to 1000 hours of salt spray exposure.

Installation: Load coils into the PanelFast 510A tool, adjust depth as needed, and fire sequentially for accurate, flush installation. Refer to IAPMO ER-848 for approved structural applications and design values.

Product Information

• Sold per case
• Case: 12 Coils with 250 pins each (3,000 total)
• Model: AGS-100-0200NA

• Fastening Tool Compatibility: PanelFast Model 510A
• Dimensions: .100" diameter x 1-1/2" length
• Head Diameter: Nominal 5/16"
• Finish: Aericote® 1000 (1,000-hour salt spray protection)
• Shank Type: Knurled
• Point Type: Ballistic

• Approved for: Gypsum sheathing, DensGlass® Gold, Fiberock®, plywood, OSB, and fiber cement boards
• Code Report: IAPMO ER-848
