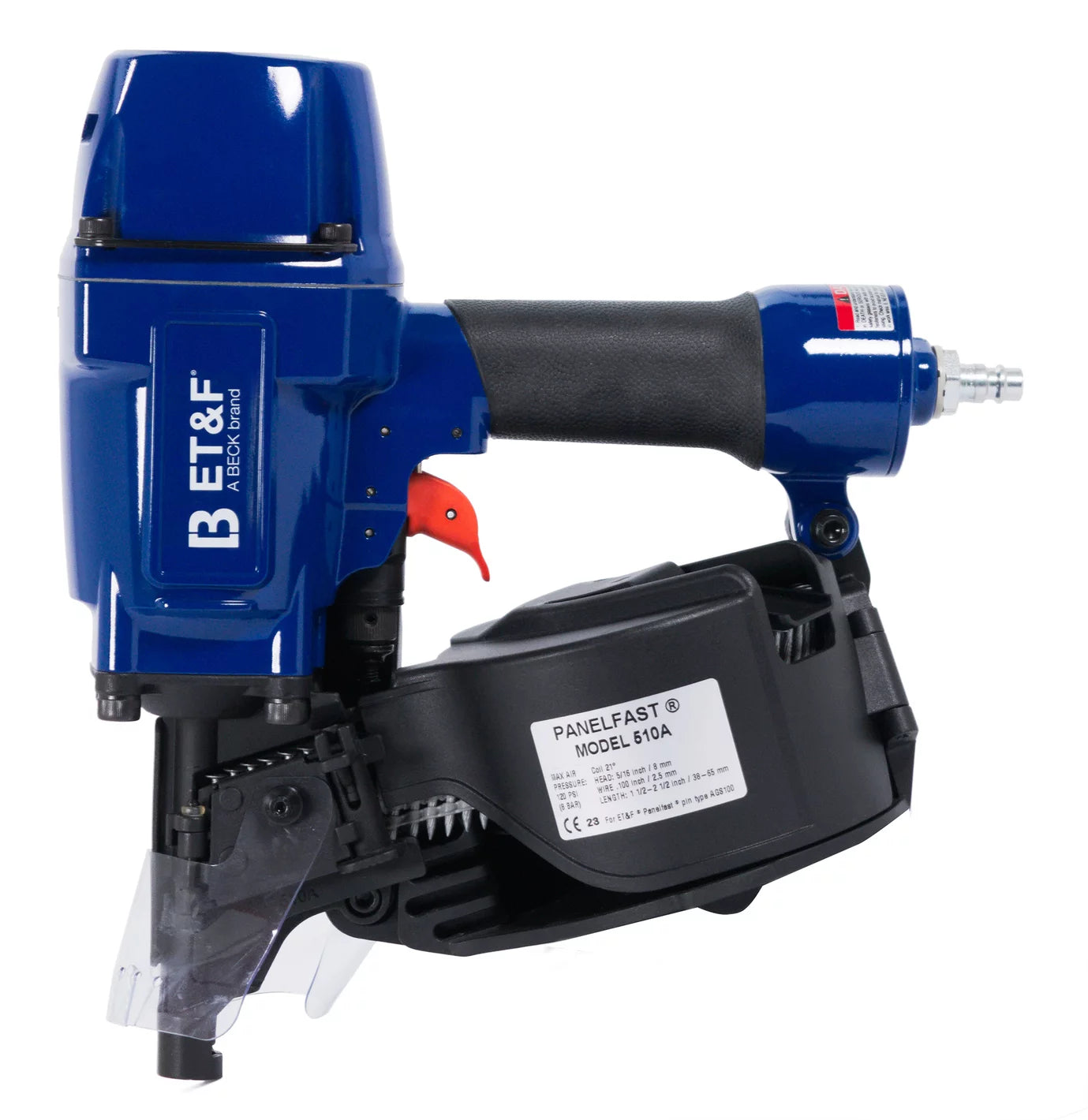

ET&F 510A PanelFast System Pneumatic Coil Tool

Product Description

The PanelFast System Model 510A is a pneumatic coil tool designed for high-speed, high-strength fastening to light-gauge steel. Engineered for durability and precision, this versatile tool can fasten a wide range of materials, such as fiber cement, structural panels, sheathing, insulation, and vinyl siding, directly to steel framing. With the power to drive pins into 20 to 14 gauge steel at wood-like speed, the 510A is ideal for contractors needing fast, reliable performance on the job site.

• It accepts large head pins (nominal 5/16" diameter) from 1-1/2" to 2-1/2" in length for maximum pull-over resistance. A fingertip-adjustable depth control allows precise pin placement, and the sequential fire system ensures accurate, controlled fastening. The tool operates on standard jobsite air compressors at up to 120 psi.

Installation: Load coil pins into the tool, adjust depth as needed, and connect to a regulated air supply (70–120 psi). Align and press the tool firmly against the surface for accurate pin placement. Use only non-detergent pneumatic tool lubricant for maintenance.

Product Information

• Sold per tool
• Fastener Range: 1-1/2" to 2-1/2" pins (5/16" head)
• Operating Pressure: 70–120 psi (5–8 bar)
• Air Consumption: 0.077 SCF per shot
• Actuation: Sequential fire
• Loading: Coil-fed
• Tool Lubrication: Non-detergent pneumatic tool lubricant
• Versatile applications: siding, sheathing, stucco lath, insulation, and more
• Certifications: ICC ESR-2290, ESR-1777, ESR-2398, IAPMO ER-335

Compatible Fasteners

• PLASTIC COIL PANELFAST® PINS (AGS-100-0150NA) Dims .100 x 1-1/2” Knurled Pin
• PLASTIC COIL PANELFAST® PINS (AGS-100-0200NA) Dims .100 x 2” Knurled Pin
• PLASTIC COIL PANELFAST® PINS (AGS-100-0250NA) Dims .100 x 2-1/2” Knurled Pin

Manufacturer's Details

• https://cdn.shopify.com/s/files/1/0624/4433/9245/files/510A_2107_US_screen.pdf?v=1749149705
