ClarkDietrich PANEL LIFT CLIP (PLC) 12" 12" x 3" x 97mils (12ga) (1-1/2" diameter hole) (bucket of 50)

Product Description

The ClarkDietrich Panel Lift Clip is engineered with a load-rated design, ensuring safe lifting of wall panels during assembly, whether in warehouses or on job-sites. Each clip is pre-punched for easy screw attachment to the panel. The clips also feature a larger hole optimized for clamping. The rounded top design facilitates smooth sliding of clamps without snagging on corners. Available in 12-gauge thickness and offered in two sizes, 8” and 12”, these clips provide versatile and reliable panel lifting solutions. Installation: 1- Attach the Panel Lift Clips to both sides and at intermediate points along the panel. 2- For intermediate clip placement, cut a groove in the top track large enough to insert the clip. 3- Follow specifications outlined by the Engineer of Record (EOR) for anchoring clips to the panel, including fastener quantity and location. Note: Panel Lift Clips are designed for single use only and cannot be reused or reattached.

Product Information

• Sold as 50 per bucket

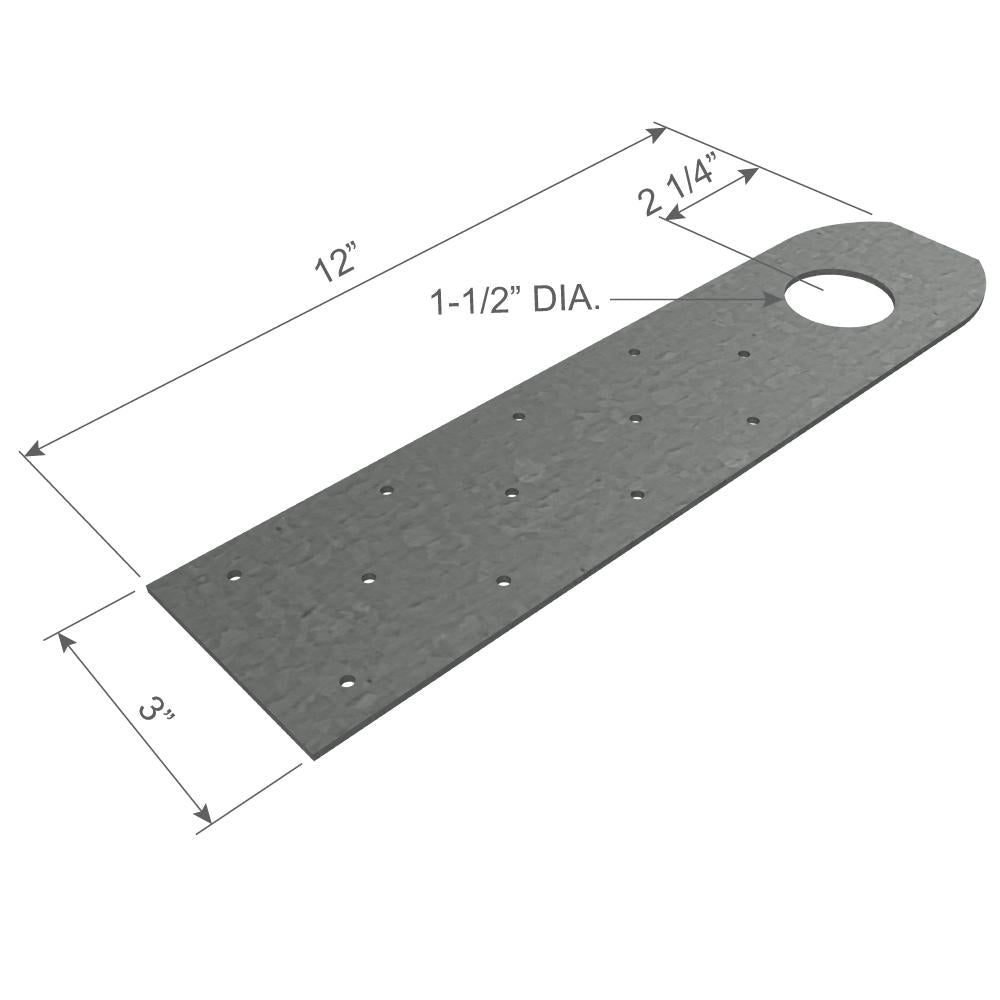

• Dimensions: 12" x 3" x 97mils (12ga) (1-1/2" diameter hole)
• Safely lift wall panels at assembly warehouses or on job-sites.
• Pre-punched for screw attachment to the panel.
• Pre-punched with a larger hole for clamping.
• Rounded design at top of clip allows lets clamp slide freely.
