Zeus Fasteners Attach metal lath in stucco to 20-16 gauge steel studs, #8 X 1-5/8", Modified Truss Head, #2 Reduced Phillips, Self Drilling Point, Zinc Coating, 10000 Per Box (Z8158MTD) 1-5/8" x 8 (box of 10000)

Product Description

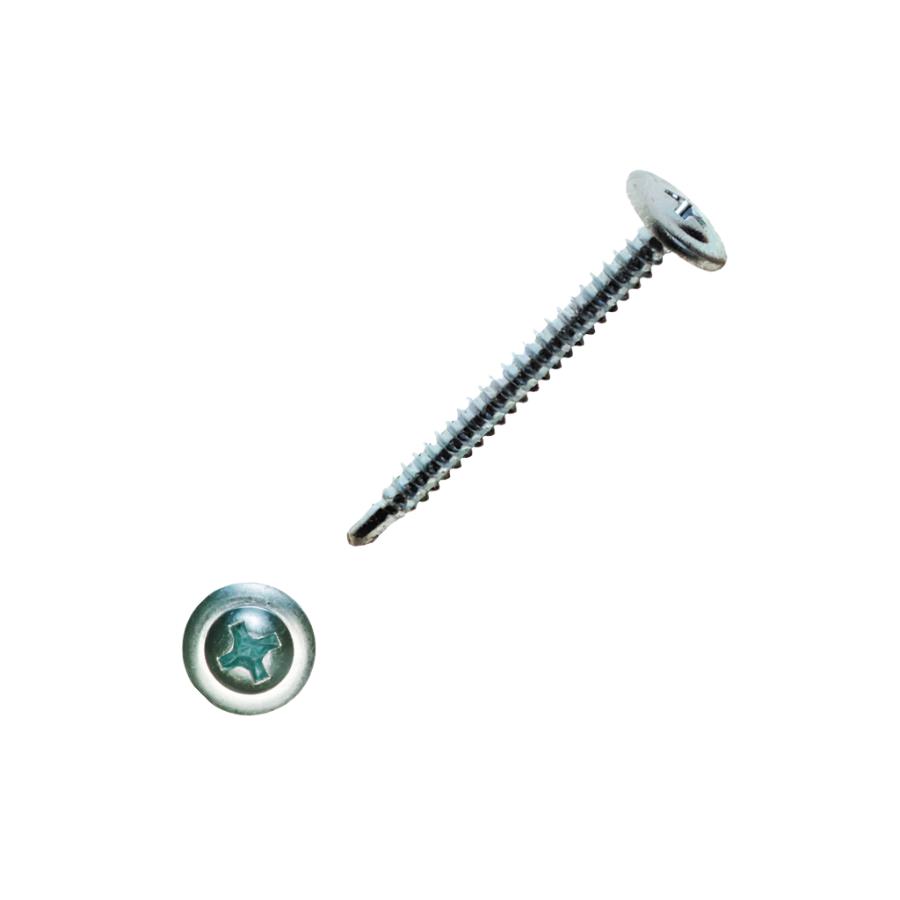

The Self-Drill Modified Truss Screw by Kratos (Zeus) is designed for attaching metal lath in stucco to 20-16 gauge steel studs. Featuring a #2 Reduced Phillips Modified Truss Head, it provides a clean, low-profile finish. This is achieved by offering all the benefits of a pan head while also incorporating a built-in washer design for increased diameter. It is a fine-thread, self-drilling screw that increases tensile strength while eliminating the need for pilot holes. Its zinc coating protects the fastener from corrosion.

Product Information

• Sold as 10000 per box
• Dimensions: 1-5/8" x 8
• Self-Drill Modified Truss Screw by is designed for attaching metal lath in stucco to 20-16 gauge steel studs
• #2 Reduced Phillips Modified Truss Head provides a clean, low-profile finish with built-in washer design for increased diameter
• Fine-thread increases tensile strength
• Self-drilling screw eliminates the need for pilot holes
• Zinc coating protects the fastener from corrosion
