ClarkDietrich MC105 MOMENT CLIP (PLATE INCLUDED) 5-1/2" x 4" x 2" x 118mils (10ga) (bucket of 25)

Product Description

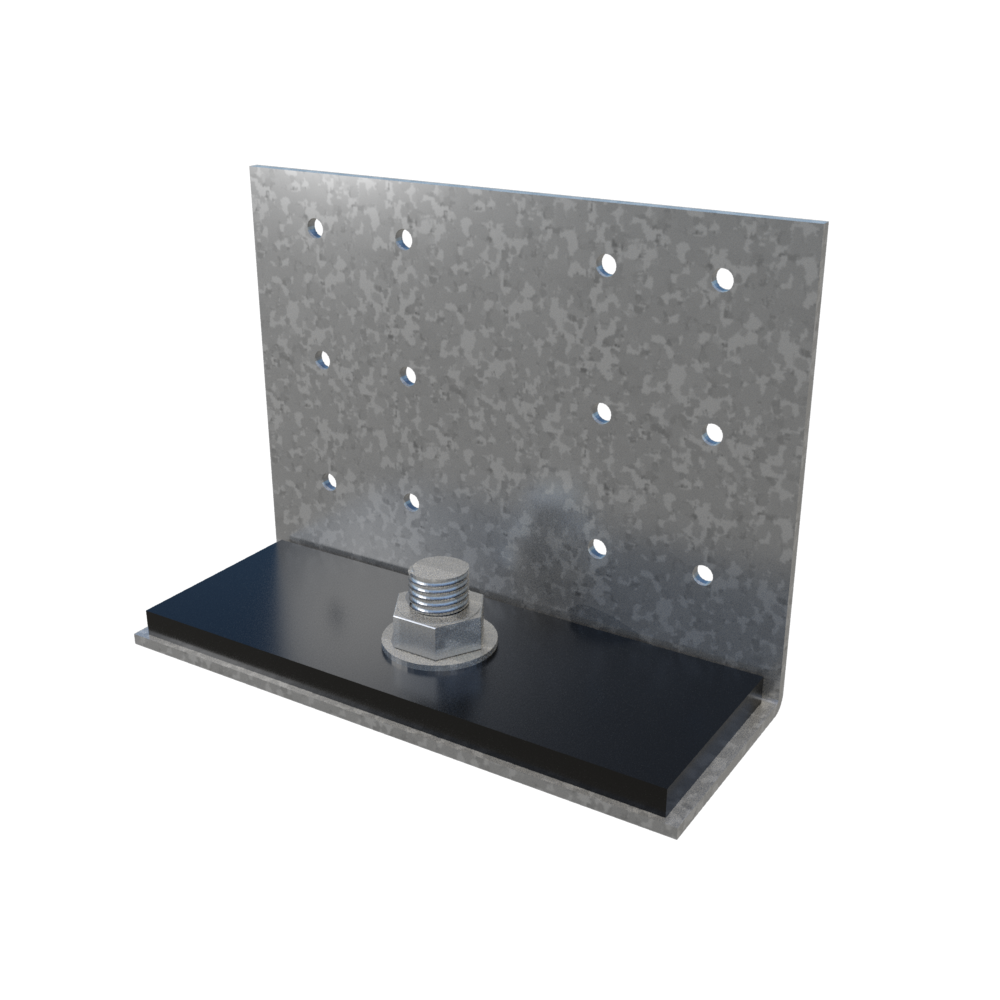

ClarkDietrich moment clips are high-performance, cost effective solutions for knee wall-to-foundation connections and shear wall-to-foundation connections. These multi-application clips feature a 1/4" thick A36 steel stiffening plate that provides superior design values for maximum performance. The moment clips are designed to resist horizontal, torsional and vertical (uplift) loads. These clips are prepunched with a series of attachment holes for steel framing connections and a 1/2" anchor bolt hole for foundation connections. Installation: 1- Secure the Moment Clip to the steel framing member by using #12 screws in the prepunched holes. Number of screws and screw pattern is based on load required to achieve listed capacities. 2- Place 1/4" steel stiffening plate on top of short leg of Moment Clip so anchor holes are aligned. 3- Secure 1/4" steel stiffening plate and Moment Clip to foundation using 1/2" x 2" long Hilti Kwik-Bolt 3 or alternate anchorage calculated to resist the tension load for your specific application.

Product Information

• Sold as 25 per bucket
• Dimensions: 5-1/2" x 4" x 2" x 118mils (10ga)
• Used for knee wall-to-foundation connections
• Used for shear wall-to-foundation connections.
• Featuring a 1/4" thick A36 steel stiffening plate.
• Resist horizontal, torsional and vertical (uplift) loads.
• Pre-punched with a series of attachment holes for steel framing.
• 1/2" anchor bolt hole for foundation connections.
• G90 galvanized coating.
