ClarkDietrich

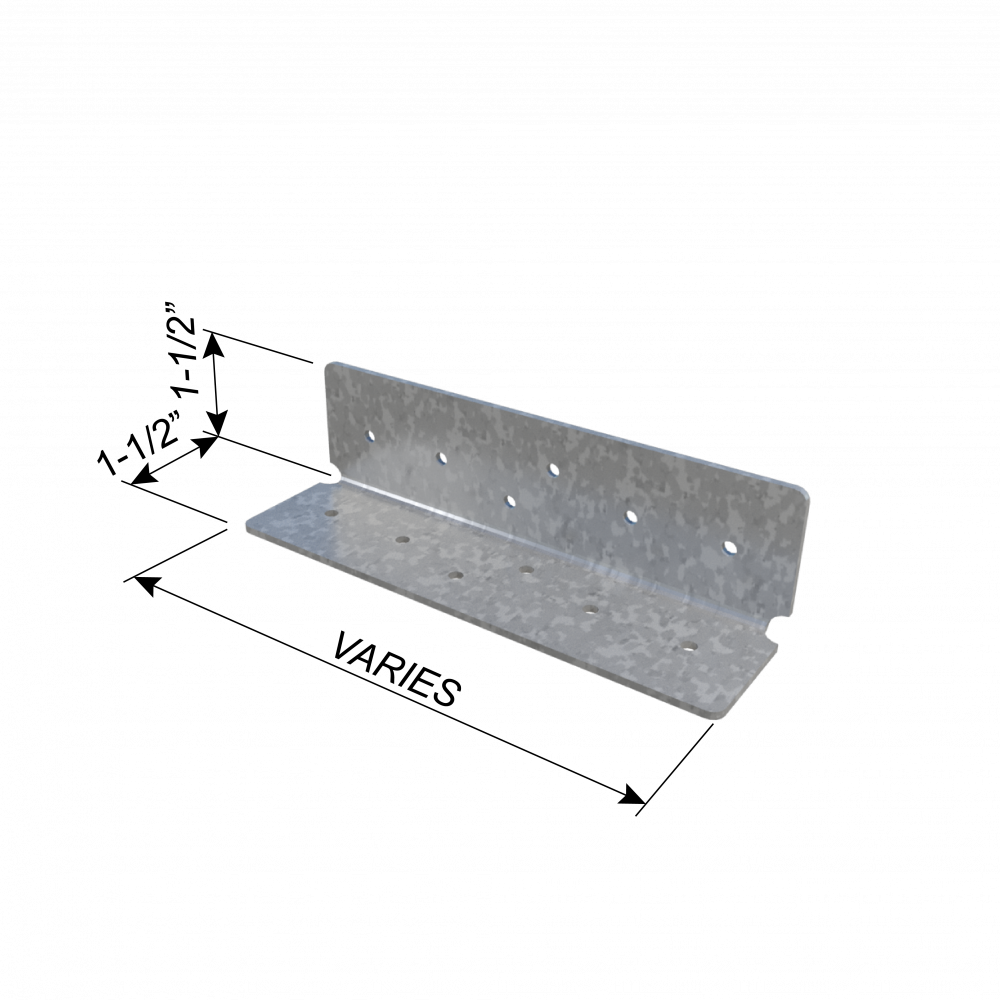

ClarkDietrich LS547 SWIFTCLIP™ 16GA 7-1/4" x 1-1/2" x 1-1/2" x 54mils (16ga) (bucket of 150)
ClarkDietrich LS547 SWIFTCLIP™ 16GA 7-1/4" x 1-1/2" x 1-1/2" x 54mils (16ga) (bucket of 150)
Couldn't load pickup availability
Product Description
LS Series SwiftClips are a 1-1/2" leg x 1-1/2" leg fixed/rigid connection clip. SwiftClip L-Series support clips are used in multiple construction projects, specifically in conjunction with structural studs and track. These labor time-savers include prepunched holes for quicker screw attachments, and are punched to accommodate for CRC lateral bracing connections. Pre-punched SwiftClips™ are used for multiple construction applications. They are commonly used for lateral bracing CRC connections, header & sill connections and floor joist hangers. The L-shaped clips fit between the stud flanges, so that shorter length clips do not need to be ordered. Fixed clips should not be used in place of a deflection clip.
Product Information
- Sold as 150 per bucket
- Dimensions: 7-1/4" x 1-1/2" x 1-1/2" x 54mils (16ga)
- Useful for lateral bracing CRC.
- Useful for header and sill connections.
- Useful for floor joist hangers.
- G90 galvanized coating.
