ClarkDietrich

ClarkDietrich LE6820 - EXT SWIFTCLIP™14GA 20" x 3" x 1-1/2" x 68mils (14ga) (box of 10)

ClarkDietrich LE6820 - EXT SWIFTCLIP™14GA 20" x 3" x 1-1/2" x 68mils (14ga) (box of 10)

Regular price $68.57 USD
Regular price Sale price $68.57 USD
Sale Sold out

Product Description

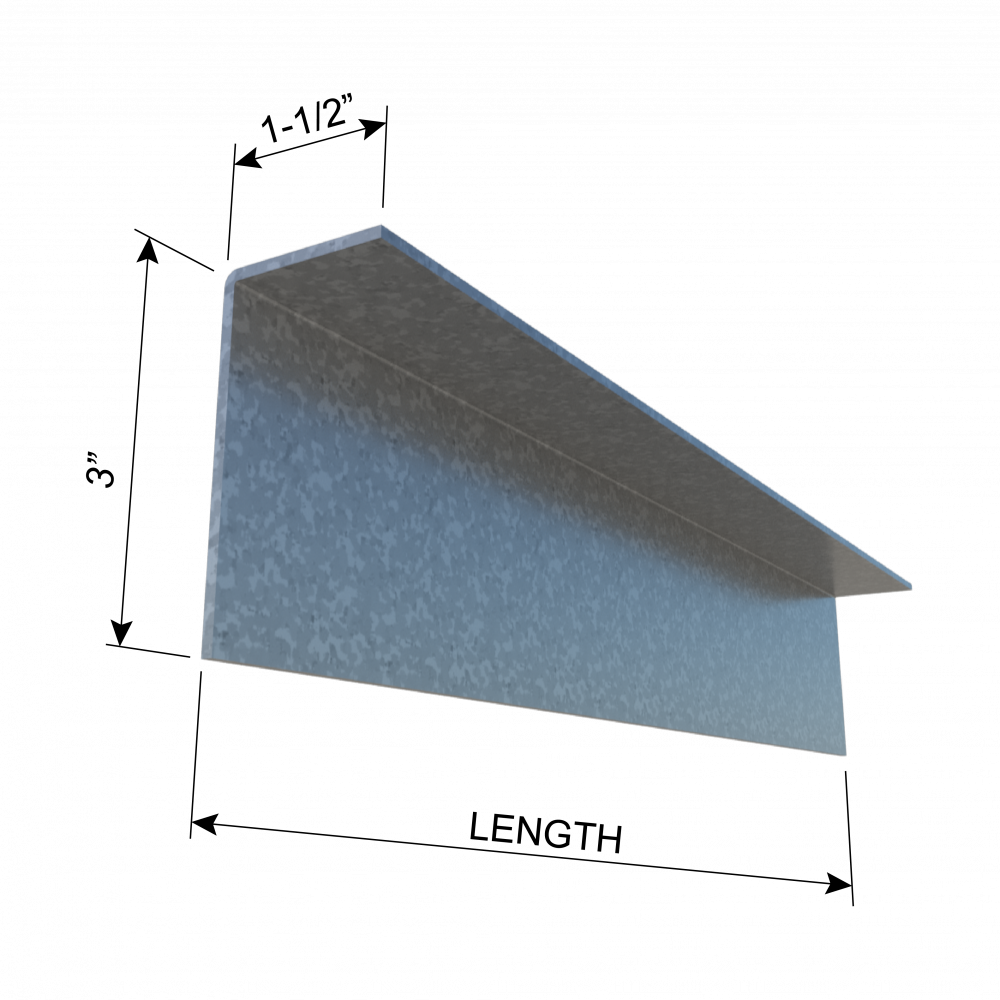

ClarkDietrich’s Extended SwiftClip™ LE-Series rigid framing clip is designed for attaching exterior wall studs to building structures, offering robust resistance to both horizontal and vertical loads. These extended rigid clips are easy to install using screws, powder-actuated fasteners, or welds. This series of clips is ideal for medium and large standoff conditions. The clips are unpunched, allowing for customization based on specific application needs and the required number and placement of fasteners. Installation: Extended SwiftClip™ LE-Series clips are attached to cold-formed steel framing members using #10 self-drilling screws at minimum. Alternatively, the clips can be welded to the cold-formed steel framing. Building frame connections can be made with powder-actuated fasteners, drill-in concrete anchors, or welding. A design professional and engineer of record should determine the appropriate type, number, and placement of fasteners for your building project.

Product Information

  • Sold as 10 per box
  • Dimensions: 20" x 3" x 1-1/2" x 68mils (14ga)
  • Attach exterior wall studs to primary structure.
  • Resists horizontal and vertical loads.
  • Ideal for medium to large standoff conditions.
  • 1-1/2" x 3" legs for up to 20" long clips.
  • Extended SwiftClip LE-Series clips are unpunched.
  • G90 galvanized coating.
