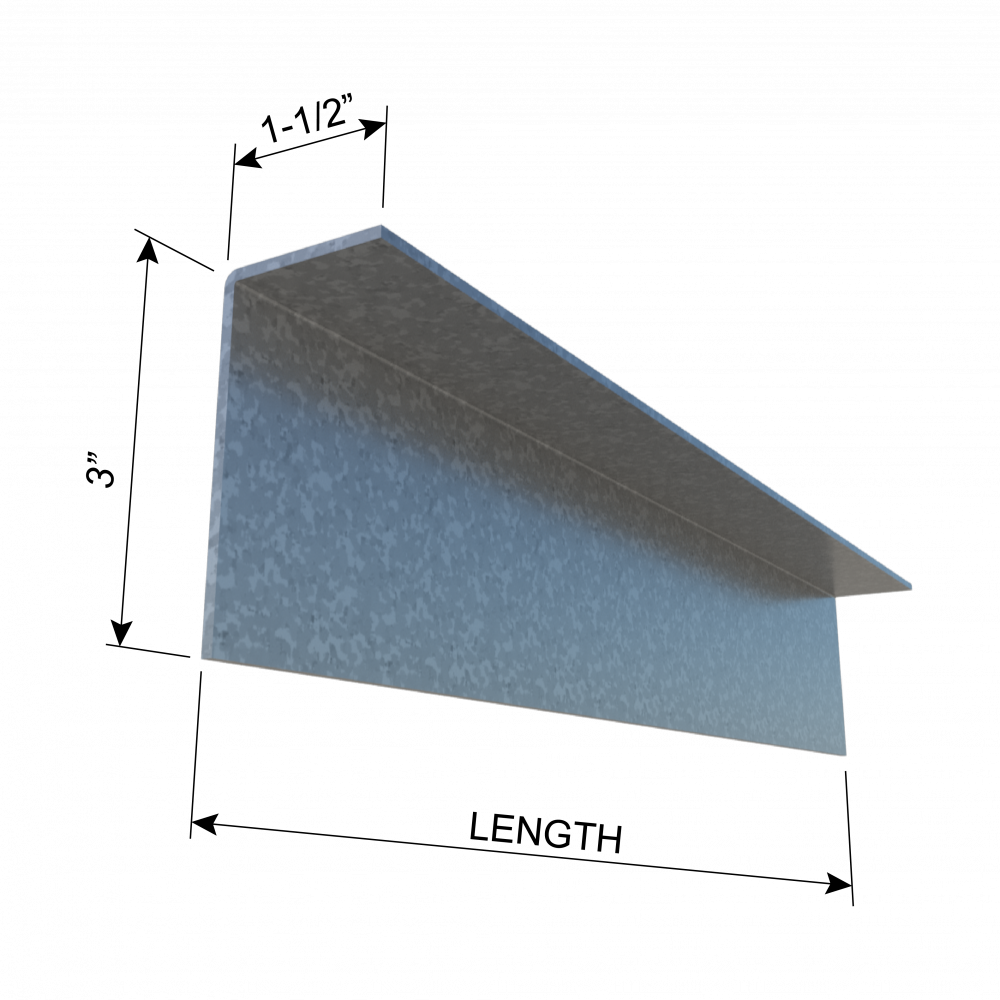

ClarkDietrich LE6816 - EXT SWIFTCLIP™14GA 16" x 3" x 1-1/2" x 68mils (14ga) (box of 10)

Product Description

ClarkDietrich’s Extended SwiftClip™ LE-Series rigid framing clip is used to attach exterior wall studs to the structure of the building. Designed to resist horizontal and vertical loads, the extended rigid clips install easily with screws, powder-actuated fasteners, or welds. This clip is ideal for all medium and large standoff conditions. These clips are unpunched as the specific application will determine the appropriate number and placement of fasteners. Installation: Extended SwiftClip™ LE-Series are attached to cold-formed steel framing members using #10 minimum selfdrilling screws. Clips can also be welded to the cold-formed steel framing. Connections to the building frame can be made with powder-actuated fasteners, drill-in concrete anchors or welding. The appropriate type, number and placement of fasteners need to be determined by a design professional and engineer of record.

Product Information

• Sold as 10 per box
• Dimensions: 16" x 3" x 1-1/2" x 68mils (14ga)
• Attach exterior wall studs to primary structure.
• Resists horizontal and vertical loads.
• Ideal for medium to large standoff conditions.
• 1-1/2" x 3" legs for up to 20" long clips.
• Extended SwiftClip LE-Series clips are unpunched.
• G90 galvanized coating.
