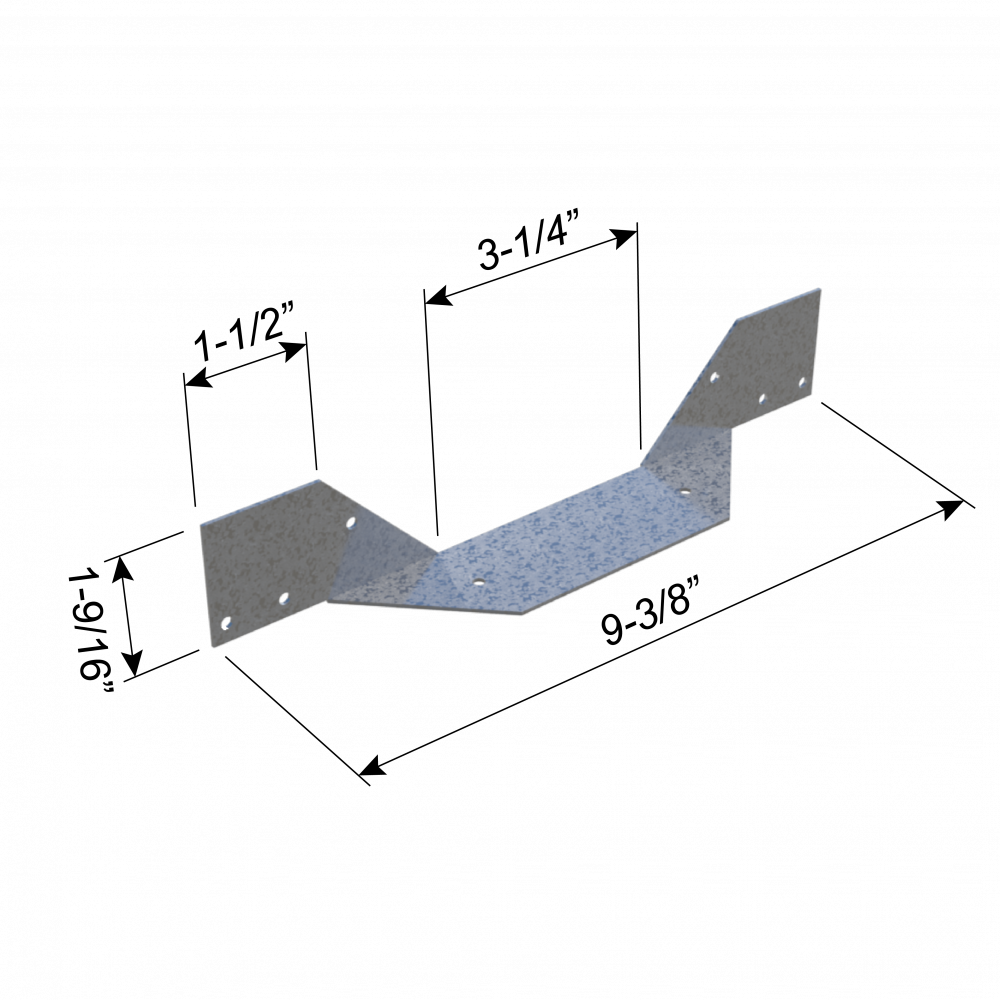

ClarkDietrich HC2 HURRICANE CLIP (COMMERCIAL) 9-3/8" x 1-9/16" x 1-9/16" x 43mils (18ga) (box of 100)
ClarkDietrich HC2 HURRICANE CLIP (COMMERCIAL) 9-3/8" x 1-9/16" x 1-9/16" x 43mils (18ga) (box of 100)
Couldn't load pickup availability
Product Description
ClarkDietrich Seismic and Hurricane Ties are designed to provide wind and seismic resistance for trusses and rafters. These clips are used to attach trusses and rafters to the primary building structure. Quick and efficient, these versatile connectors can also be used for general tie-down purposes, strong back attachments and as all-purpose ties where one member crosses another. The HC2 and HC2A seismic and hurricane ties are formed from a flat plate into an A-shaped section. The plate has a right-angle bend along its longitudinal axis to permit straddling a top plate. Installation: Place the tie so one end fits flush against the roof framing member and the other fits flush against the web of the wall stud. Attach the tie to the side of the rafter at the top and to the sides of the stud immediately below the top plate at the bottom. Fill all prepunched holes with a minimum of #10 self-drilling screws.
Product Information
- Sold as 100 per box
- Dimensions: 9-3/8" x 1-9/16" x 1-9/16" x 43mils (18ga)
- These adaptable connectors are fast and effective.
- All-purpose connections: crossing of members, strong back attachments, and tie-down applications.
- G90 galvanized coating.
