ClarkDietrich

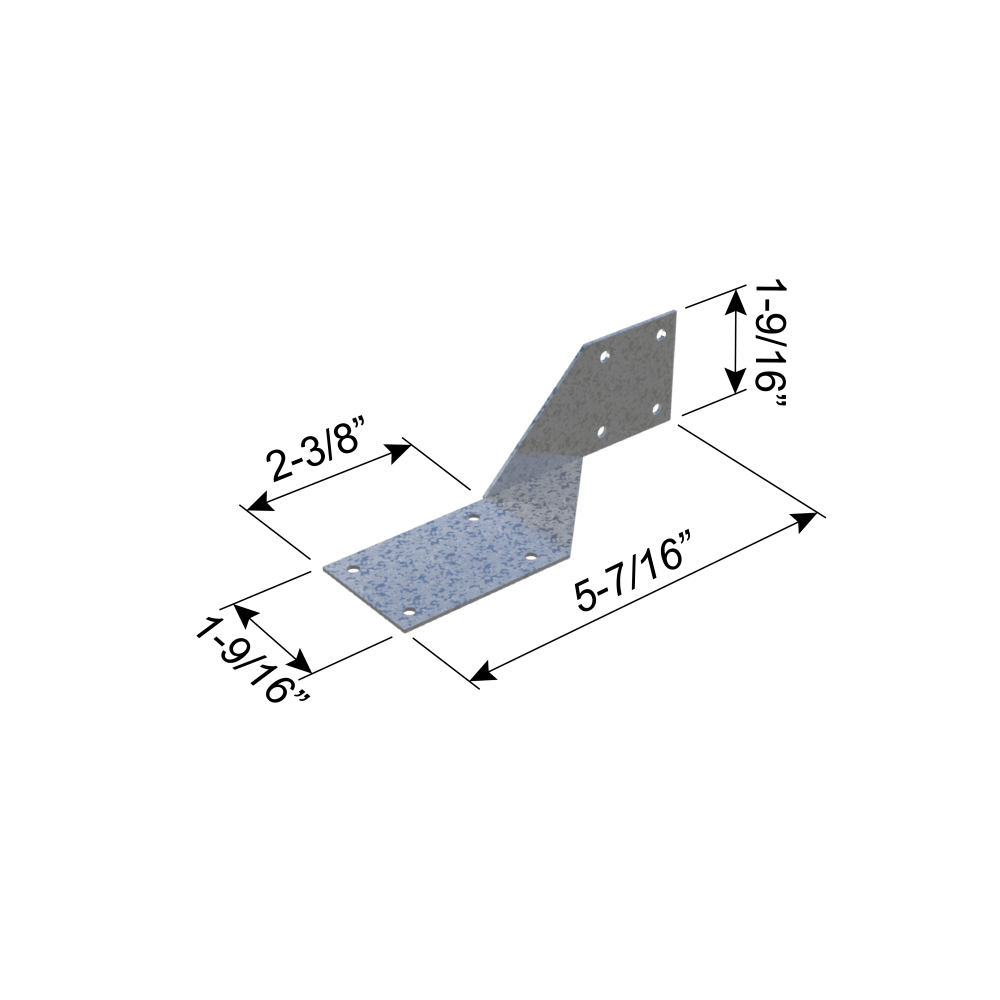

ClarkDietrich HC2.5 HURRICANE CLIP (COMMERCIAL) 5-7/16" x 1-9/16" x 1-9/16" x 43mils (18ga) (box of 100)

ClarkDietrich HC2.5 HURRICANE CLIP (COMMERCIAL) 5-7/16" x 1-9/16" x 1-9/16" x 43mils (18ga) (box of 100)

Regular price $92.86 USD
Regular price Sale price $92.86 USD
Sale Sold out

Product Description

ClarkDietrich Seismic and Hurricane Ties are designed to provide wind and seismic resistance for trusses and rafters. These clips are used to attach trusses and rafters to the primary building structure. Quick and efficient, these versatile connectors can also be used for general tie-down purposes, strong back attachments and as all-purpose ties where one member crosses another. The HC2.5 and the HC3 are twisted strap ties that are used to attach a rafter to the side of the top plate. All connections are shipped in equal quantities of separate rights and lefts. Installation: Place the tie so the top fits securely against the roof framing member and the bottom fits securely against the top plate and flange of the wall stud. Attach the tie to the rafter at the top and to the sides of the top plate and stud immediately below. Fill all prepunched holes with a minimum #10 self-drilling screws.

Product Information

  • Sold as 100 per box
  • Dimensions: 5-7/16" x 1-9/16" x 1-9/16" x 43mils (18ga)
  • These adaptable connectors are fast and effective.
  • All-purpose connections: crossing members, robust back attachments, and general tie-down applications.
  • Fastens rafter to the side of the top plate.
  • Shipped with the same number of distinct lefts and rights.
  • G90 galvanized coating.

Alternative Products

  • Angle Clips
  • Additional Resources

    Link to manufacturer website.

    Link to submittals.

    Link to collection.
